Unions
RJT Unions
-

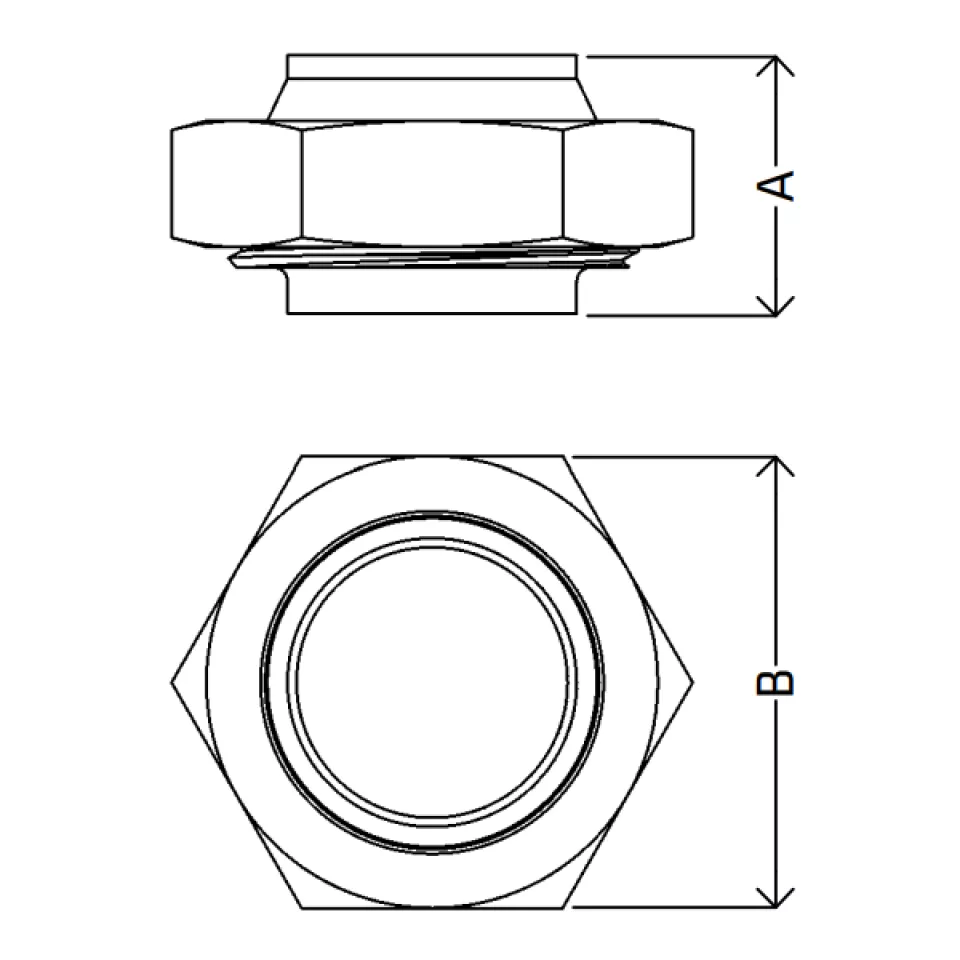

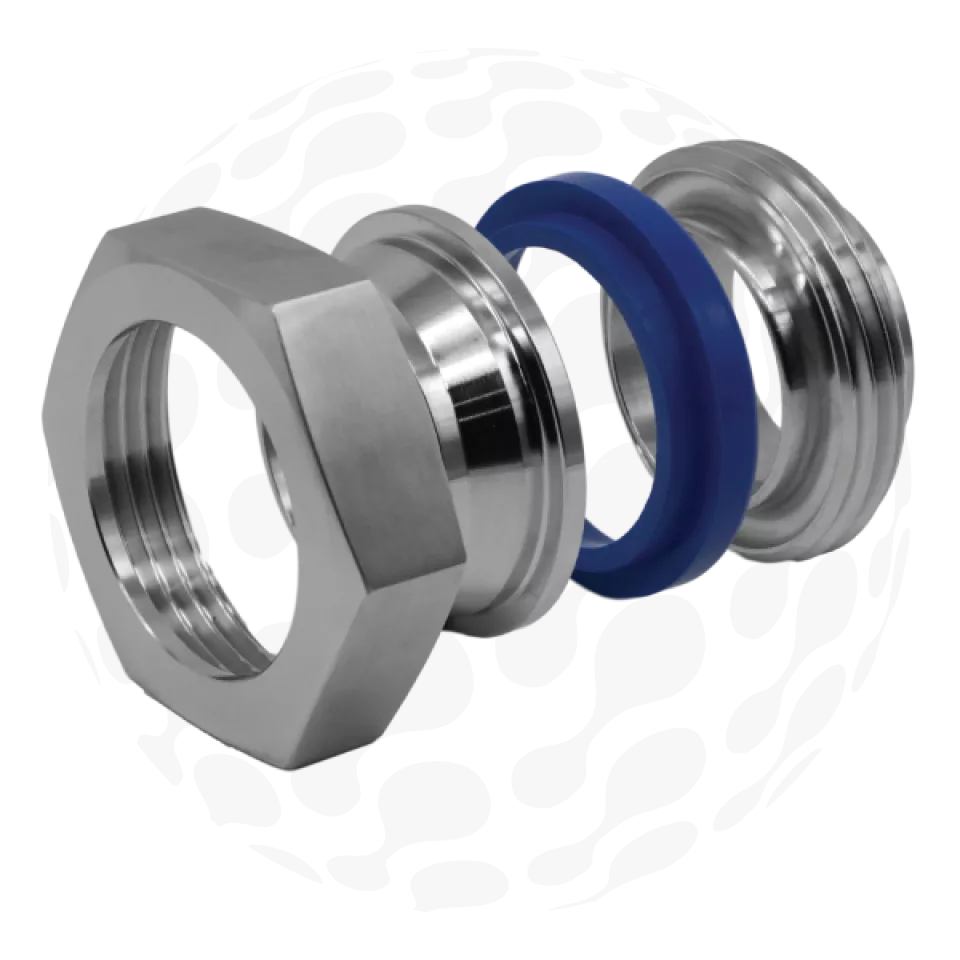

RJT Union with Hex Nut - NBR
RJT Union with Hex Nut - NBR
Features
- Complete Set including Hex Nut, Male Part, Weld Liner and Stepped Seal (NBR)
- Hex Nut is Grade 304
- Other material grade Seals available as separate parts
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Union with Hex Nut - FKM
RJT Union with Hex Nut - FKM
Features
- Complete Set including Hex Nut, Male Part, Weld Liner and Stepped Seal (FKM)
- Hex Nut is Grade 304
- Other material grade Seals available as separate parts
View Dimensions
-

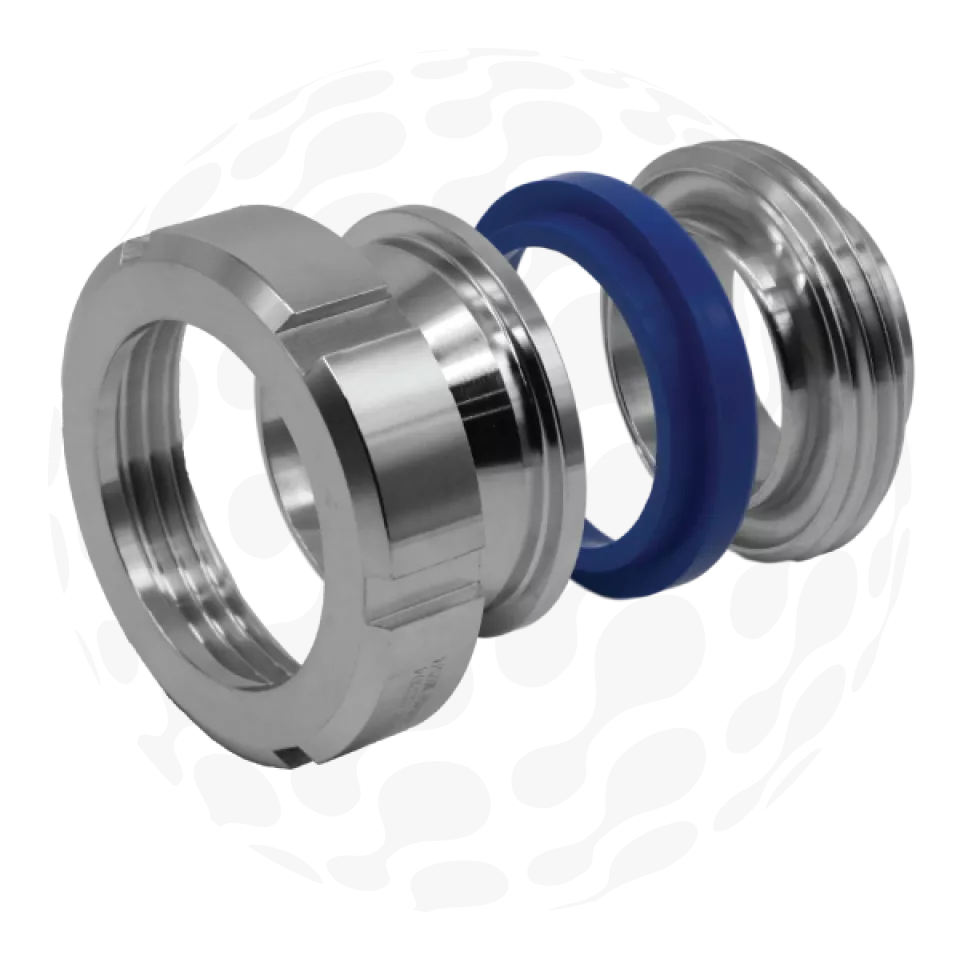

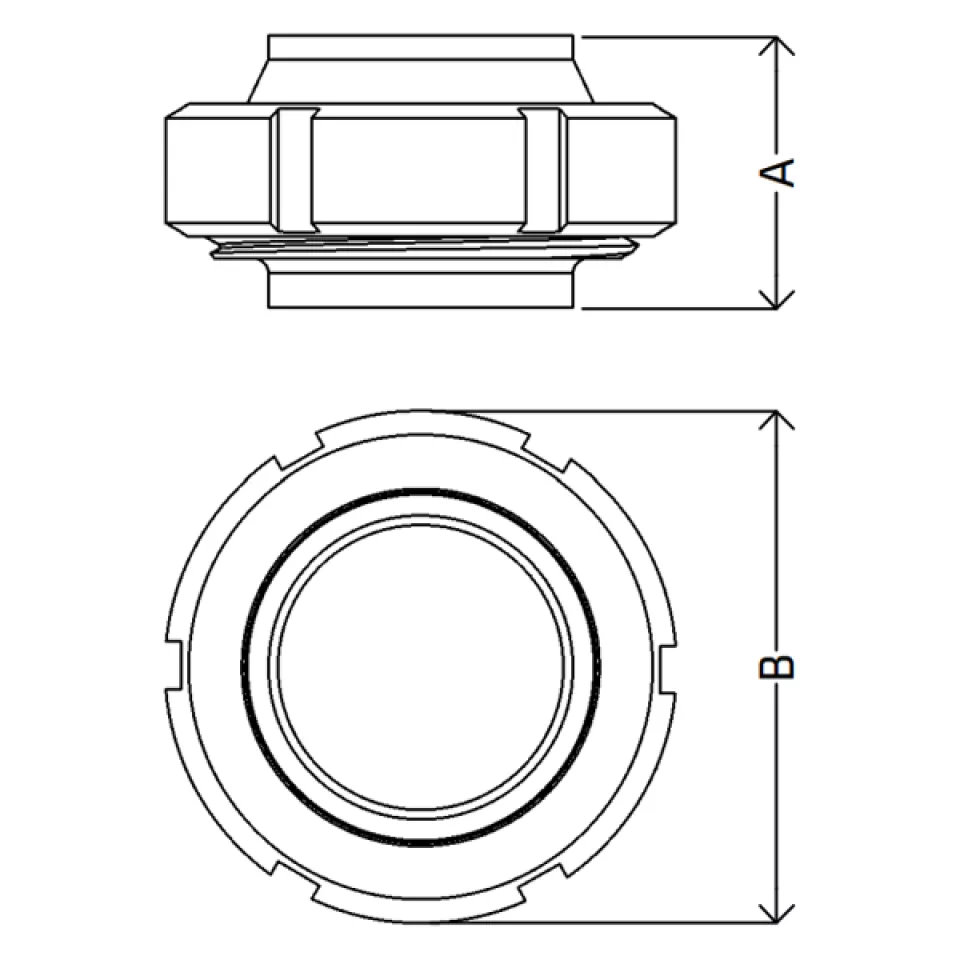

RJT Union with Slotted Nut - NBR
RJT Union with Slotted Nut - NBR
Features
- Complete Set including Slotted Nut, Male Part, Weld Liner and Stepped Seal (NBR)
- Slotted Nut is Grade 304
- Other material Seals available as separate parts
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Union with Slotted Nut - FKM
RJT Union with Slotted Nut - FKM
Features
- Complete Set including Slotted Nut, Male Part, Weld Liner and Stepped Seal (FKM)
- Slotted Nut is Grade 304
- Other material Seals available as separate parts
View Dimensions
-

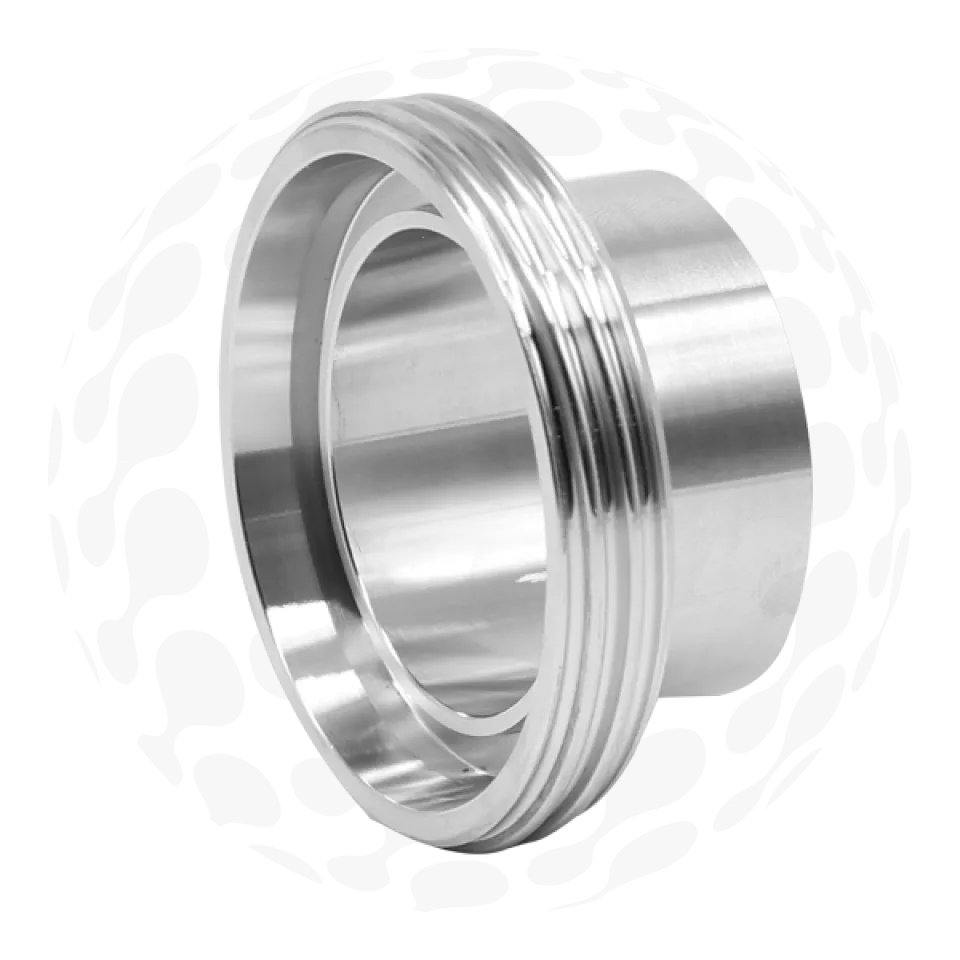

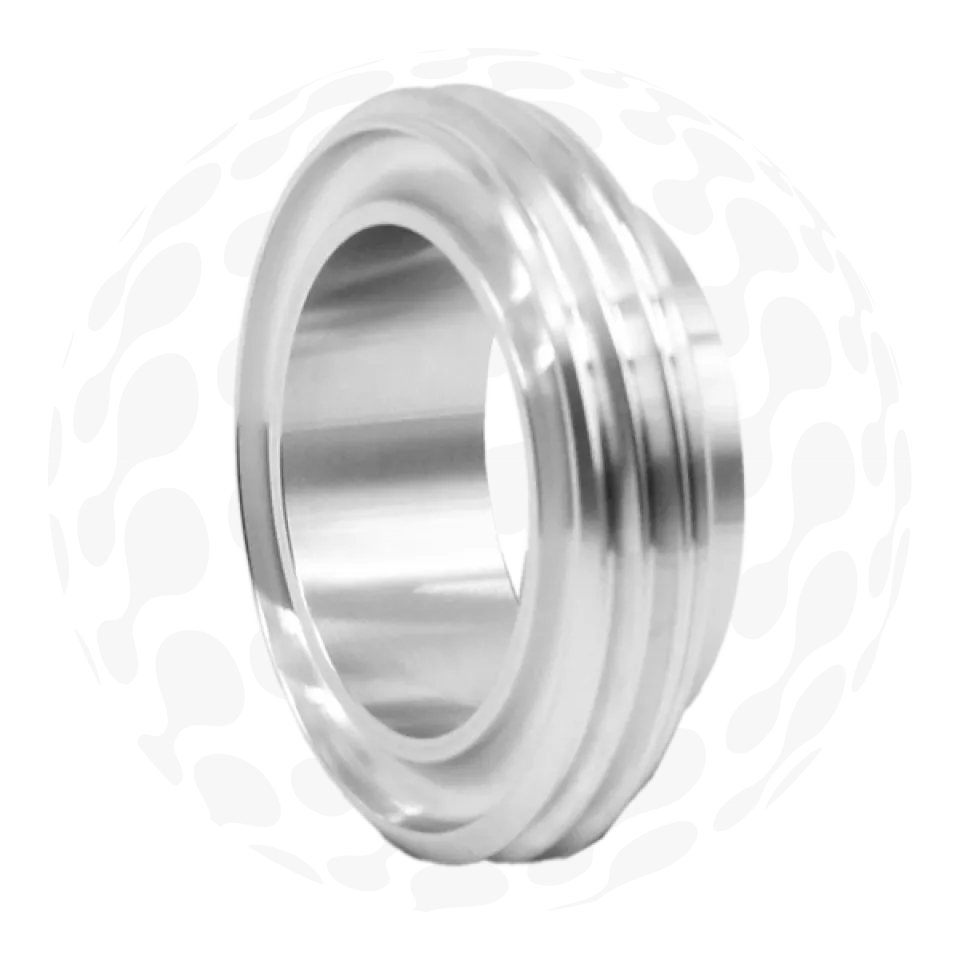

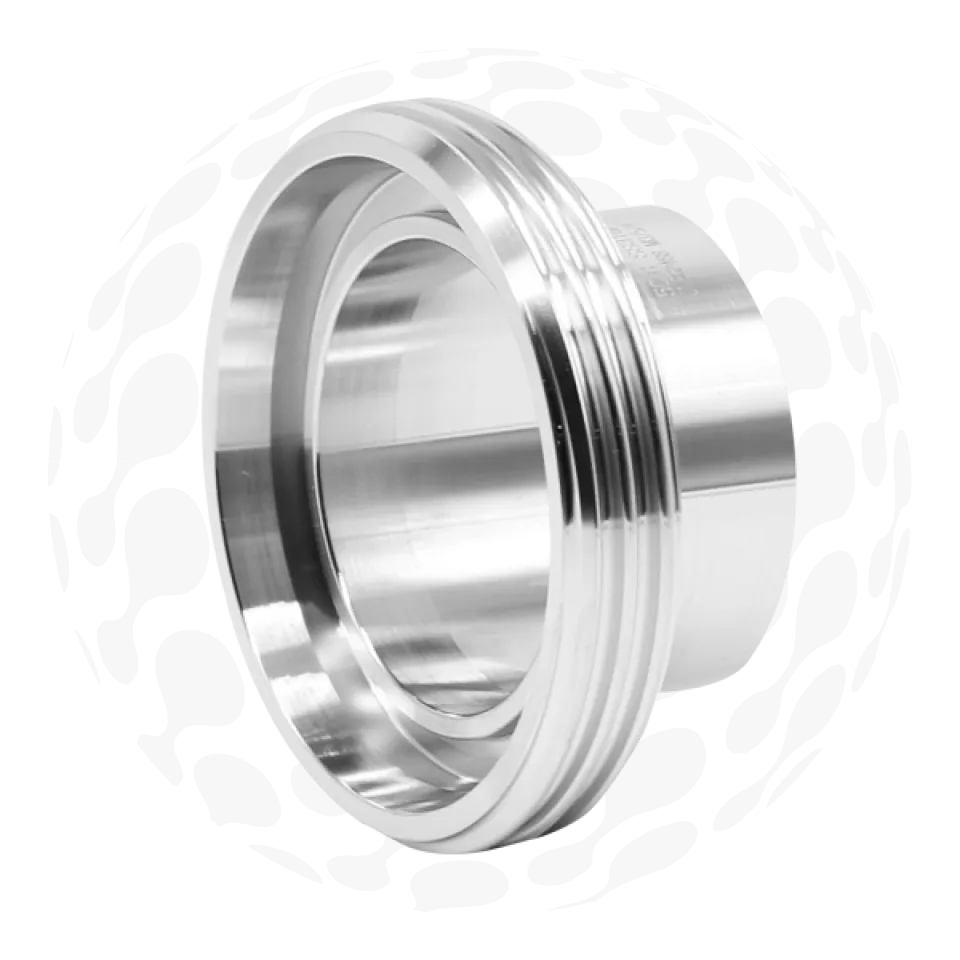

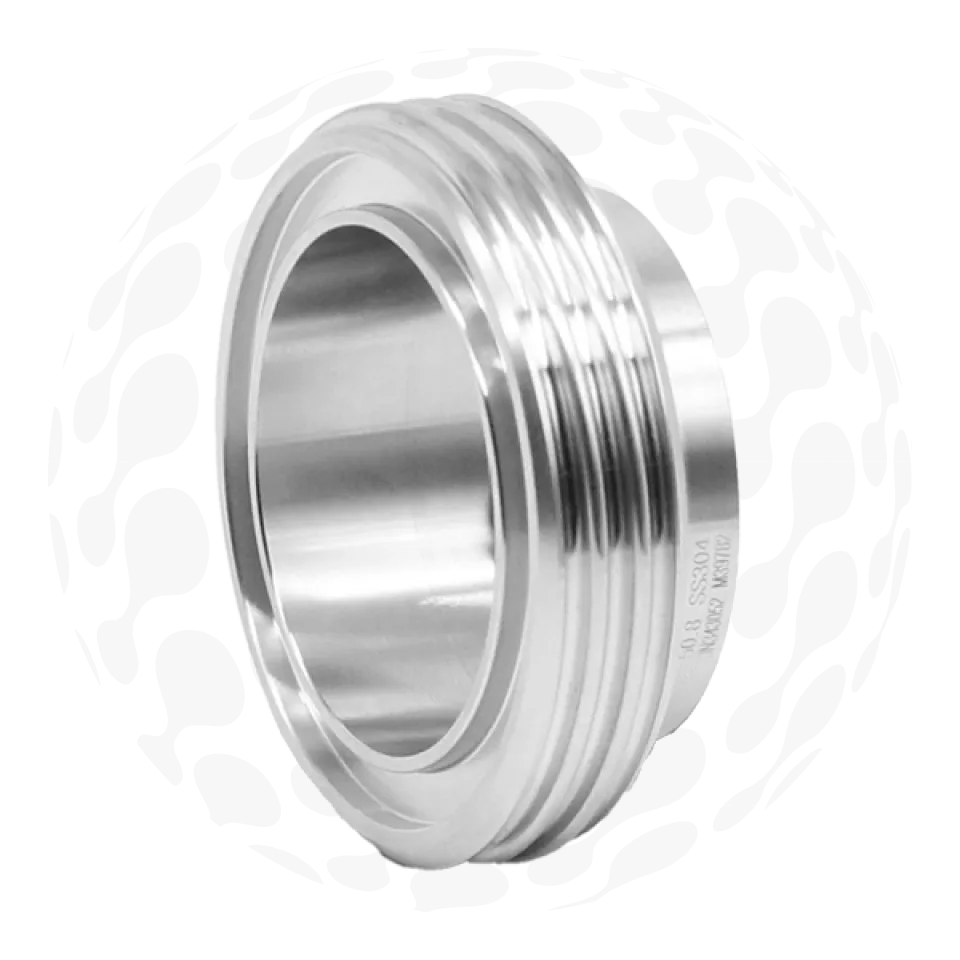

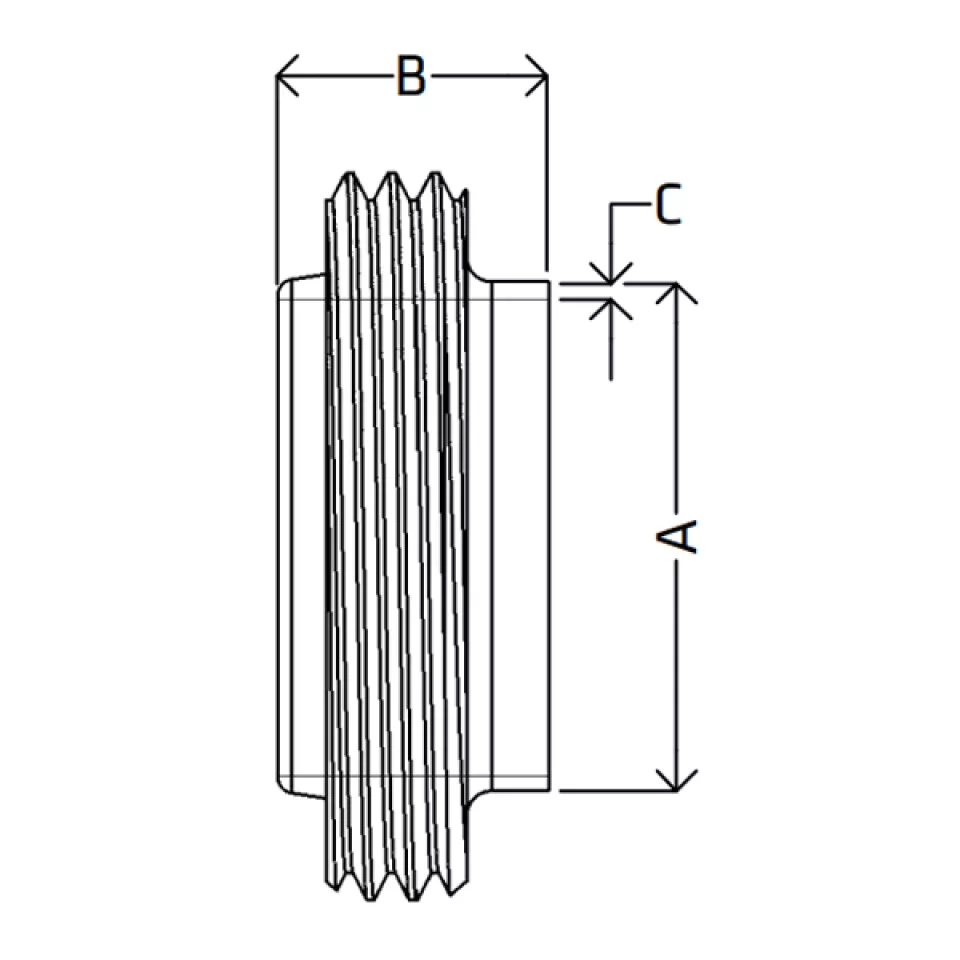

RJT Male Part
RJT Male Part
Features
- Butt welds to Outside Diameter tube sizes.
- 1/2" and 3/4" sizes require a flat seal.
View Dimensions
You need to have a trade account with us to download CAD files.
-

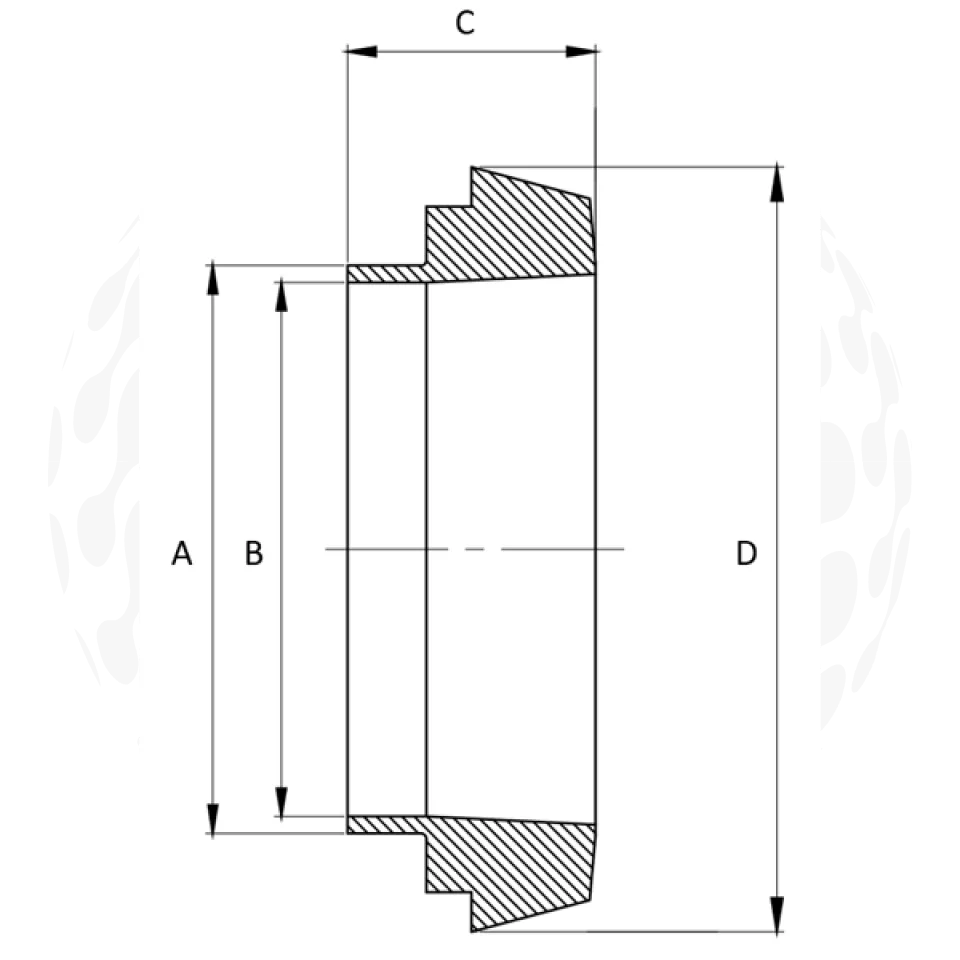

RJT Weld Liner
RJT Weld Liner
Features
- Butt welds to Outside Diameter tube sizes
- To be used with RJT Stepped Seal
View Dimensions
You need to have a trade account with us to download CAD files.
-

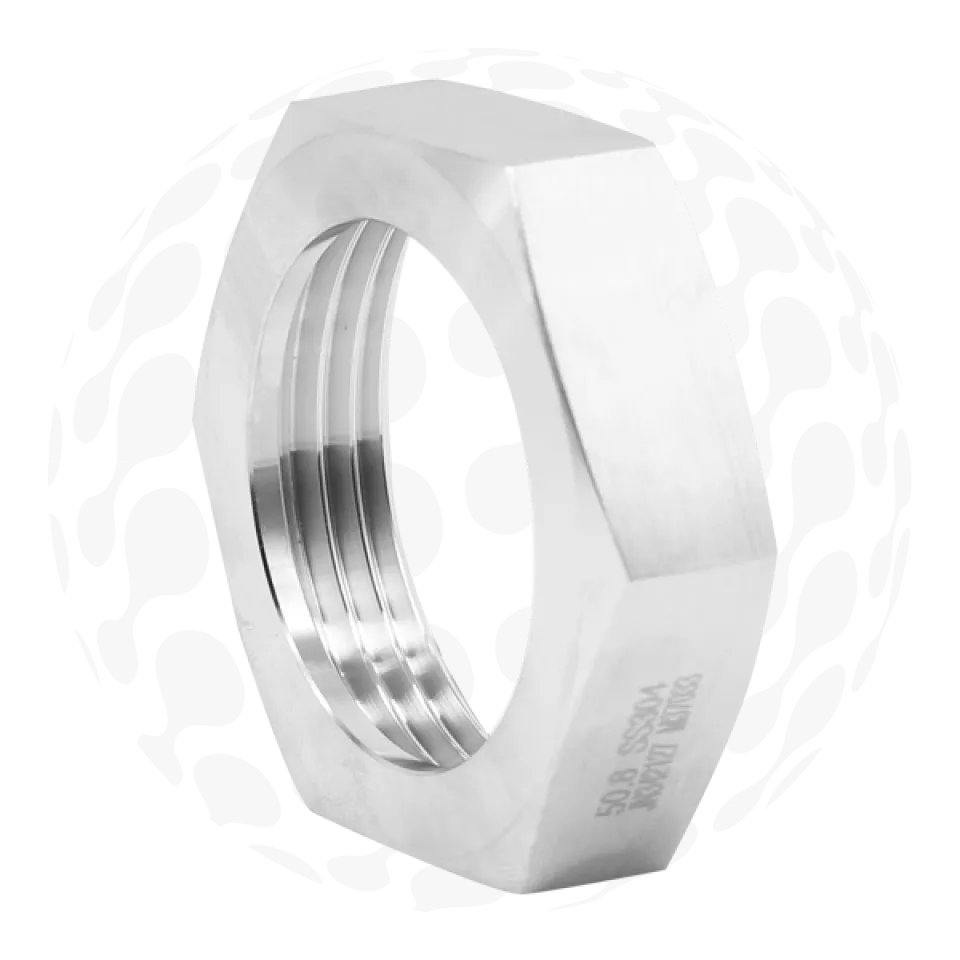

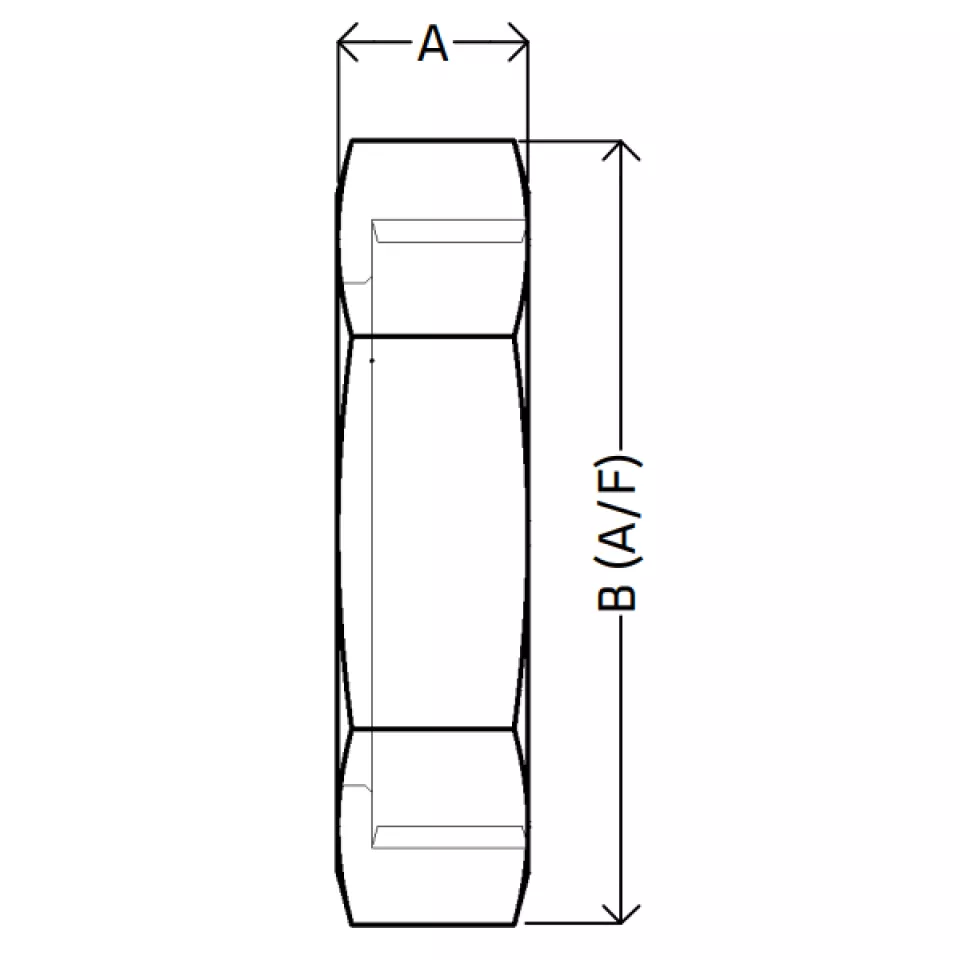

RJT Hex Nut
RJT Hex Nut
Features
- Hex spanner available to suit nut sizes
View Dimensions
You need to have a trade account with us to download CAD files.
-

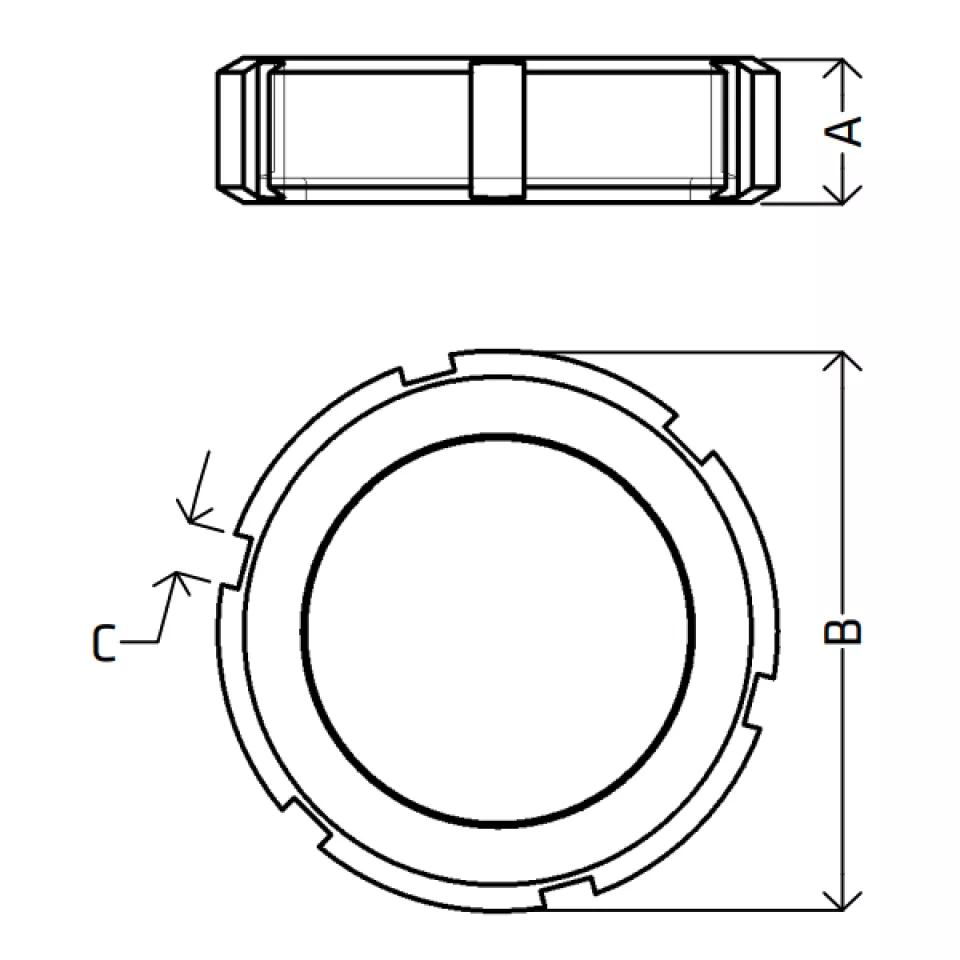

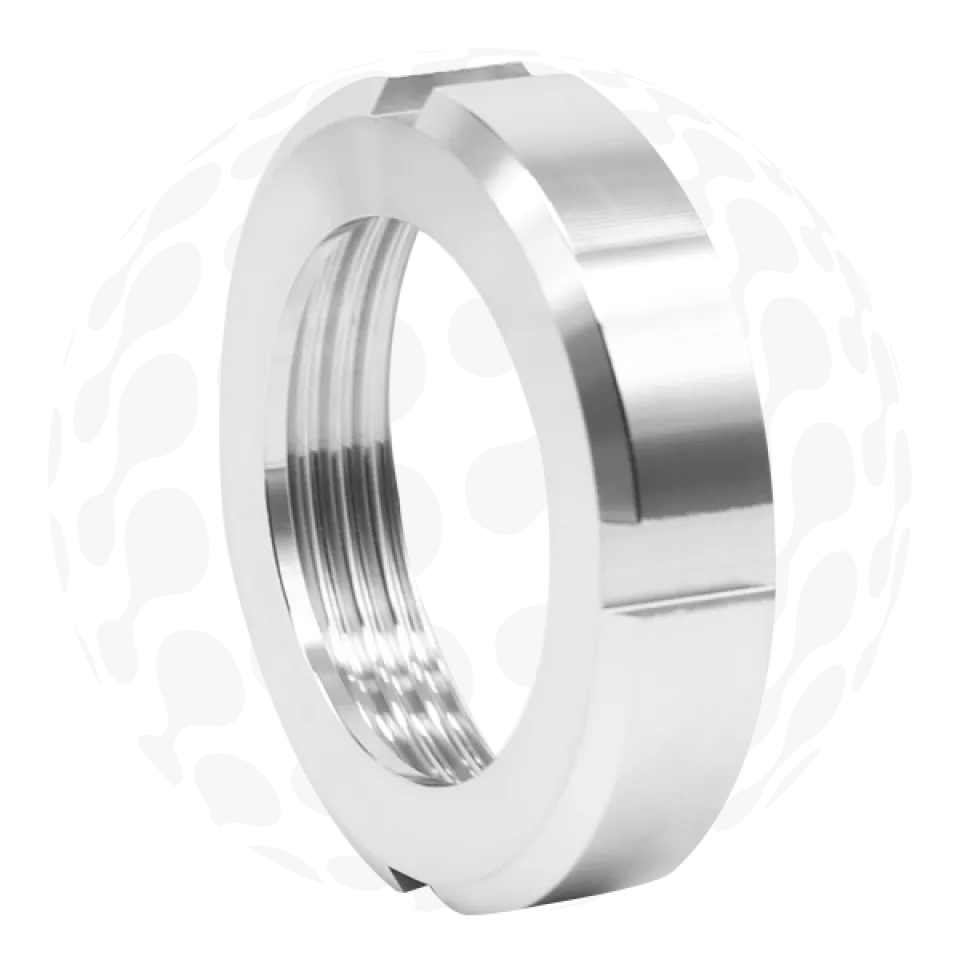

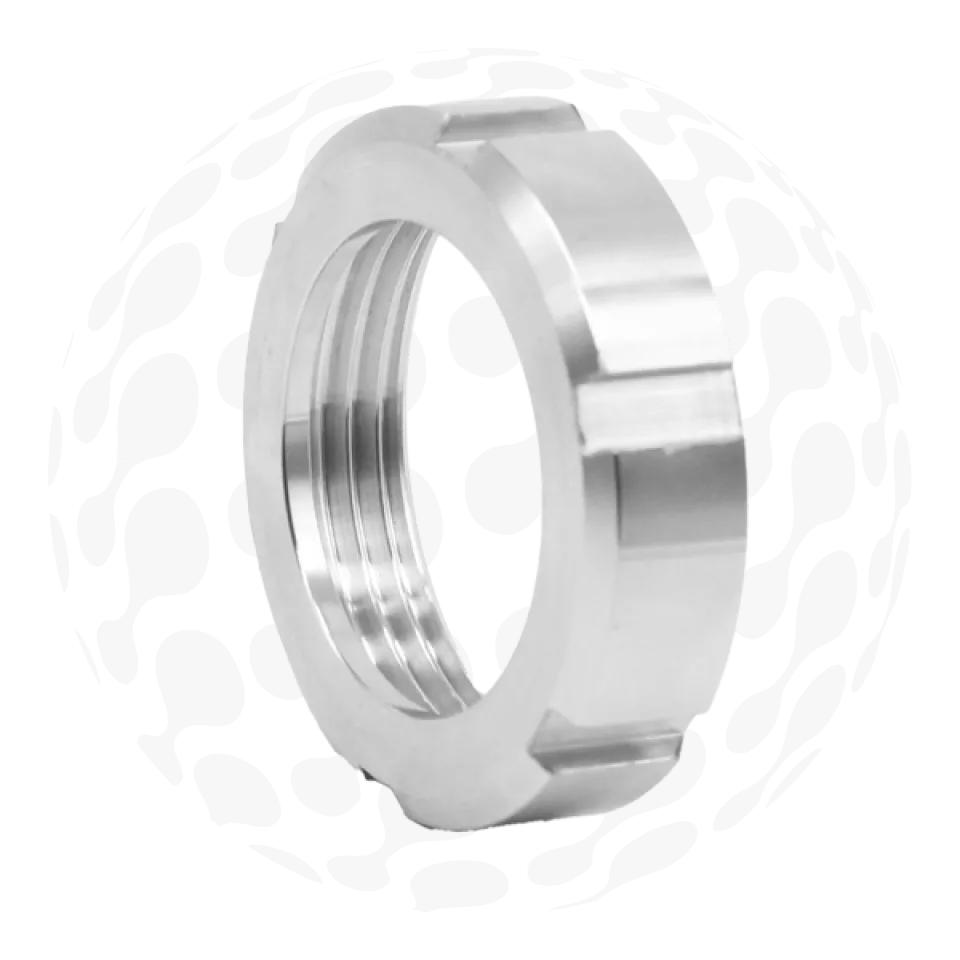

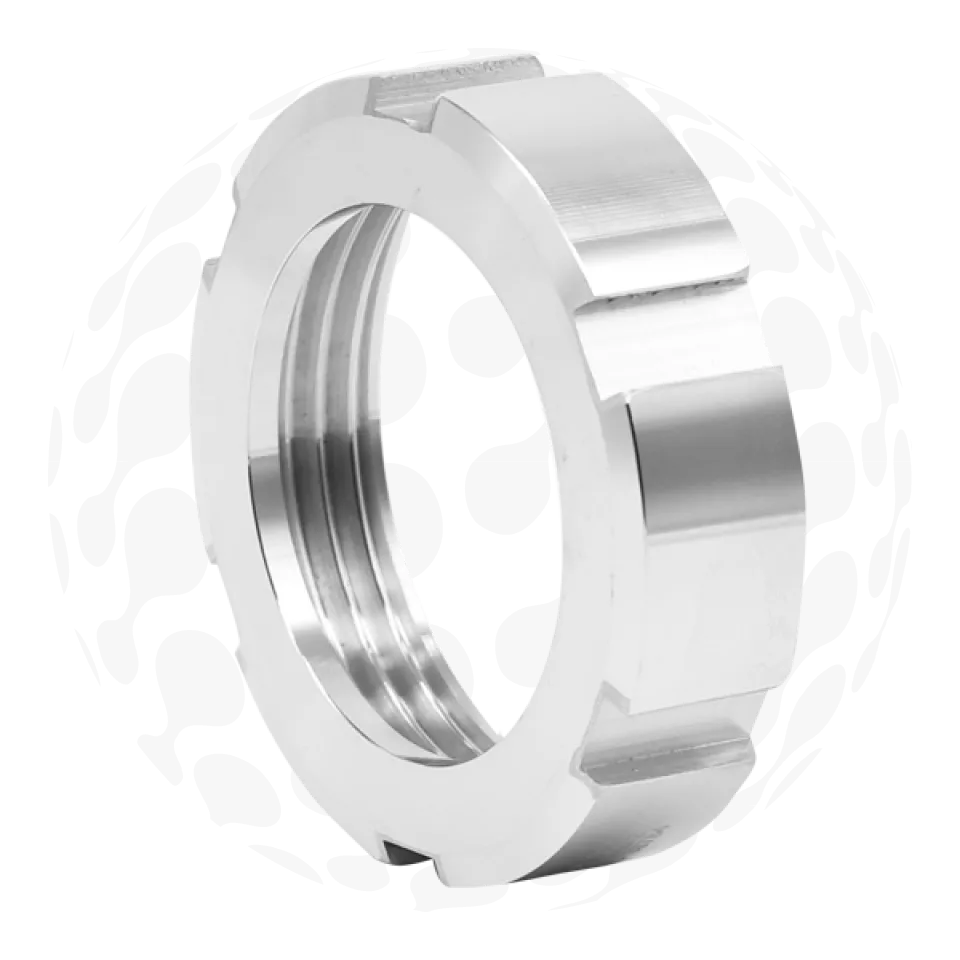

RJT Slotted Nut
RJT Slotted Nut
Features
- C spanners available to suit nut sizes
View Dimensions
You need to have a trade account with us to download CAD files.
-

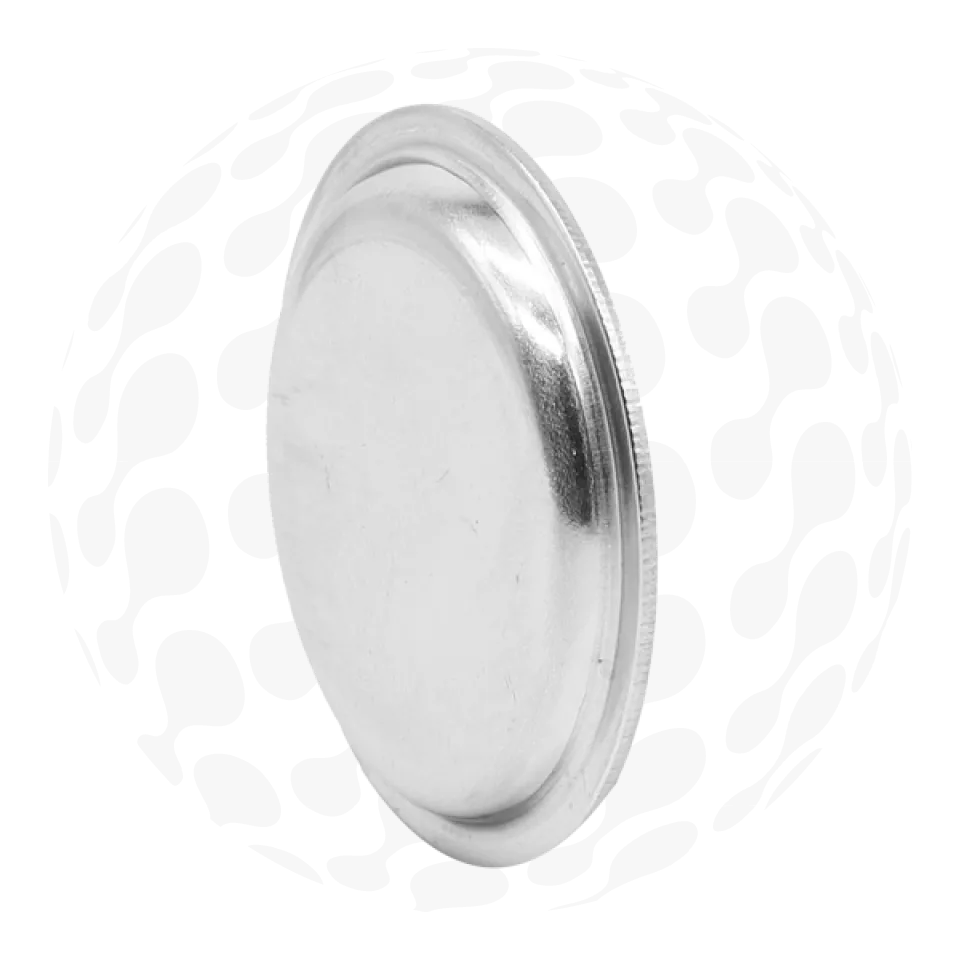

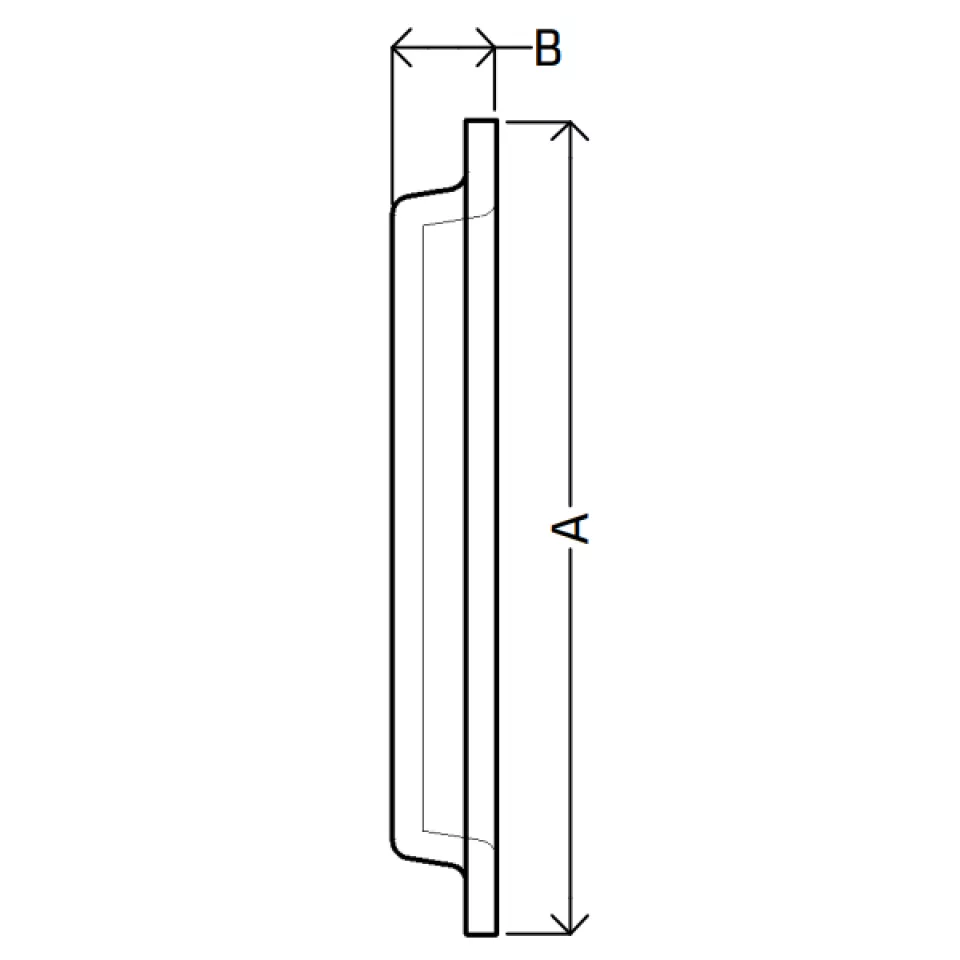

RJT Union Blank
RJT Union Blank
Features
- Used for blanking the union
- Used with Hex or Slotted Nut
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Blind Hex Nut
RJT Blind Hex Nut
Features
- Also known as a Blanking Cap
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Blind Slotted Nut
RJT Blind Slotted Nut
Features
- Also known as a Blanking Cap
View Dimensions
You need to have a trade account with us to download CAD files.
-

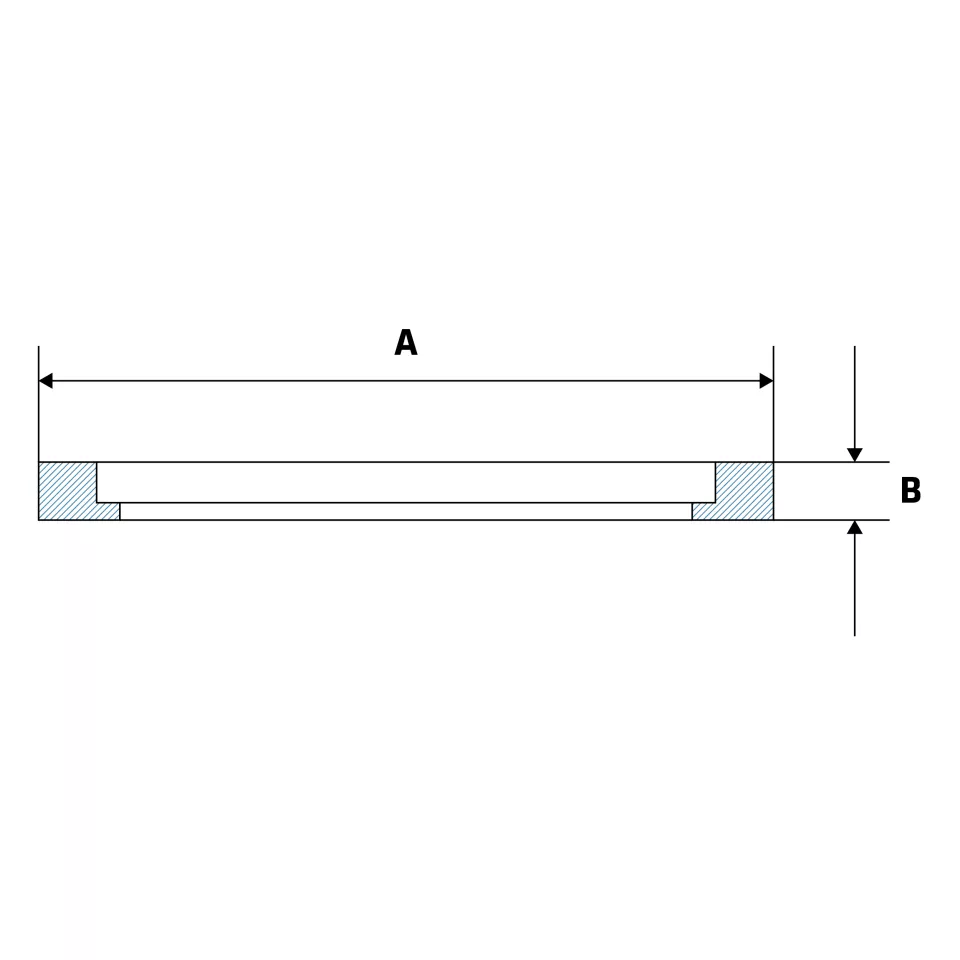

RJT Stepped NBR Seal
RJT Stepped NBR Seal
Features
- NBR temperature rating 100°C
- NBR is suitable for oils, hydrocarbon fuels, hydraulic fluids, fats, foods, water, glycol and flame retardant liquids
- 1/2" and 3/4" seals are flat section gaskets (RJTSS12 & RJTSS20) ...
- Meets FDA requirements
View Dimensions
You need to have a trade account with us to download CAD files.
-

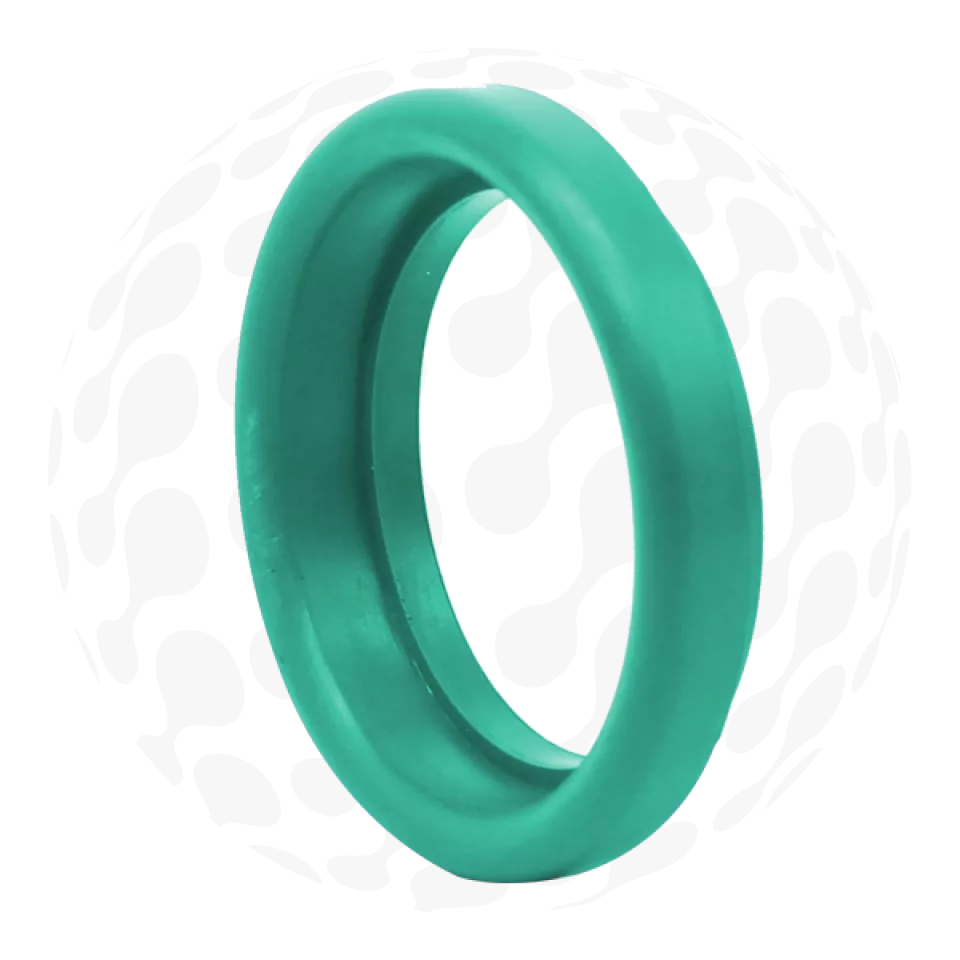

RJT Stepped EPDM Seal
RJT Stepped EPDM Seal
Features
- EPDM temperature rating 120°C
- EPDM is suitable for hot water, steam, alcohols, coolants, acids and bases
- Meets FDA requirements
View Dimensions
You need to have a trade account with us to download CAD files.
-

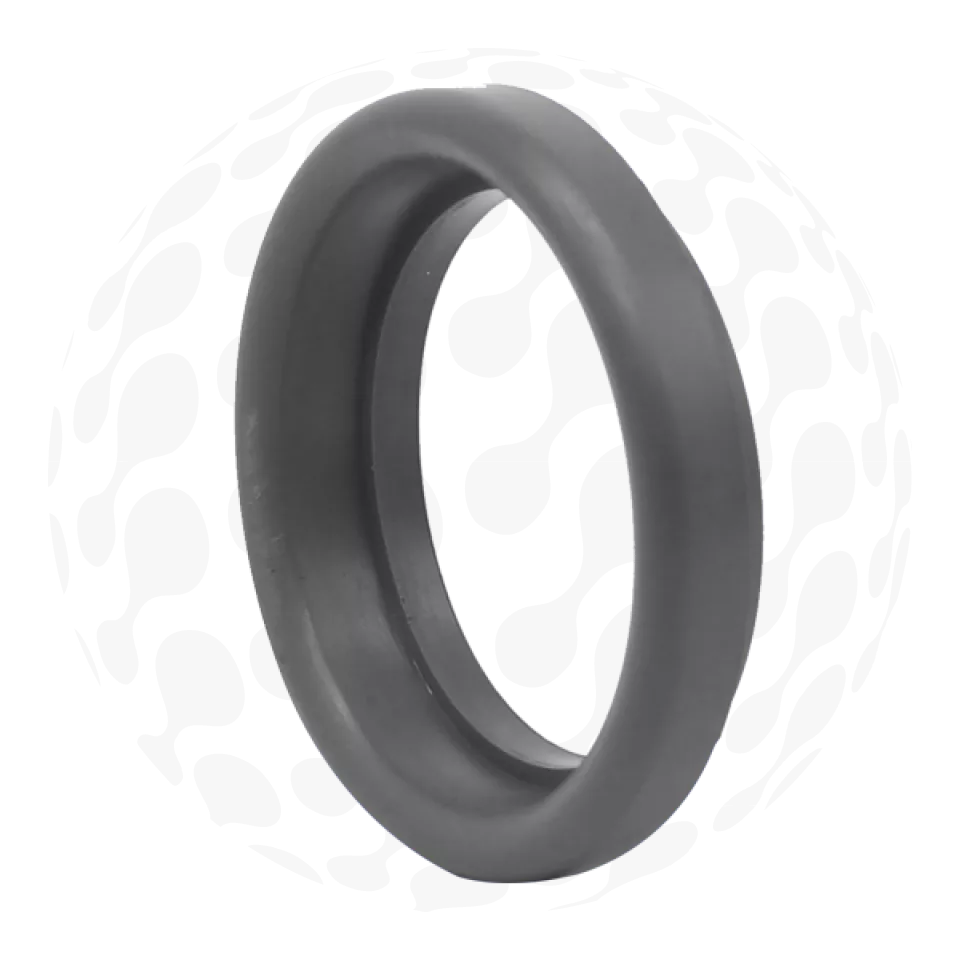

RJT Stepped FKM Seal
RJT Stepped FKM Seal
Features
- FKM Seal Temperature Rating: 230°C
- FKM Is Suitable For Higher Temperatures And Restricting Permeation Of Chemicals
- Meets FDA requirements
View Dimensions
You need to have a trade account with us to download CAD files.
-

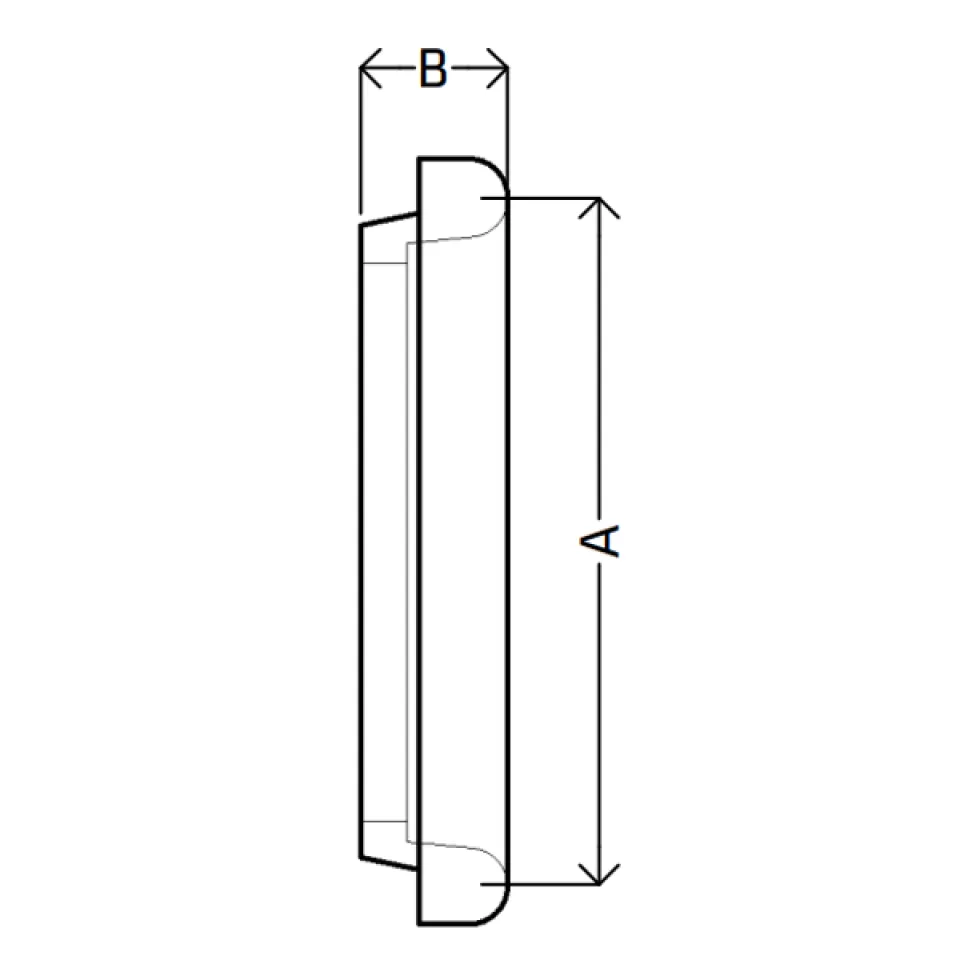

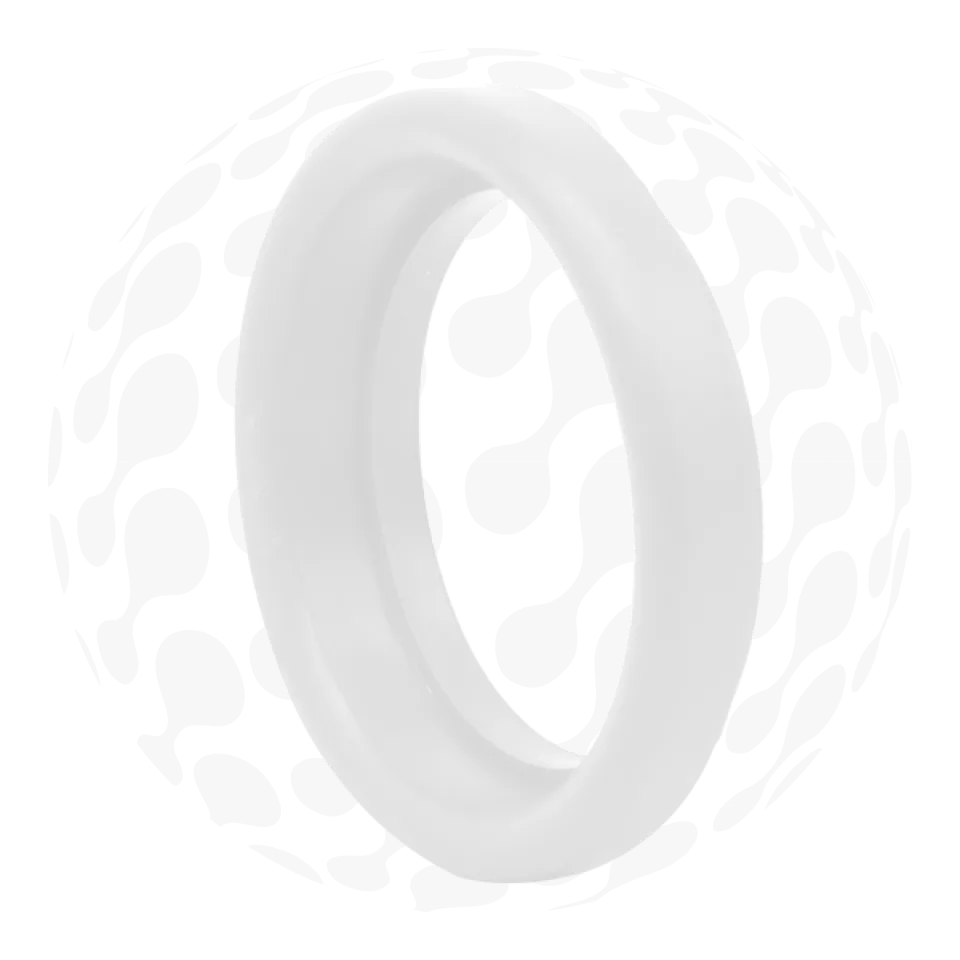

RJT Stepped PTFE Seal
RJT Stepped PTFE Seal
Features
- PTFE temperature rating -180°C, +250°C
- PTFE is suitable for hot water, steam, alcohols, coolants, acids and bases
- Meets FDA requirements
View Dimensions
You need to have a trade account with us to download CAD files.
-

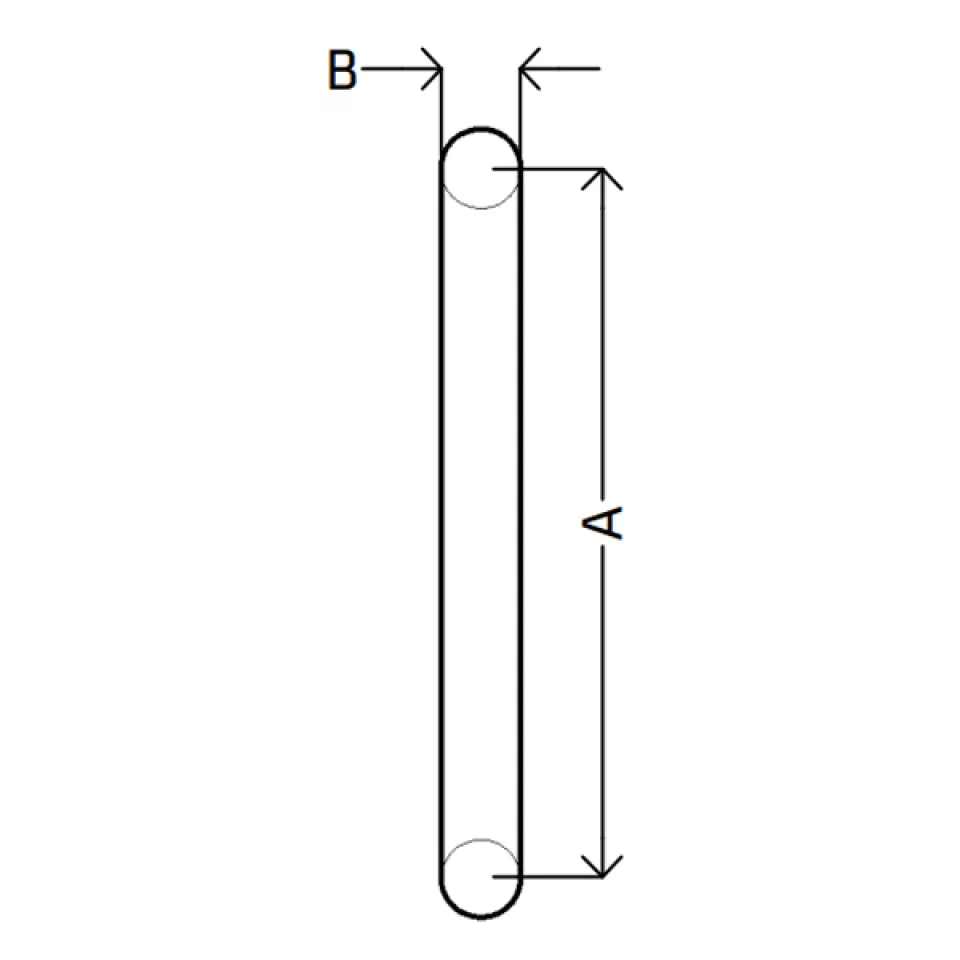

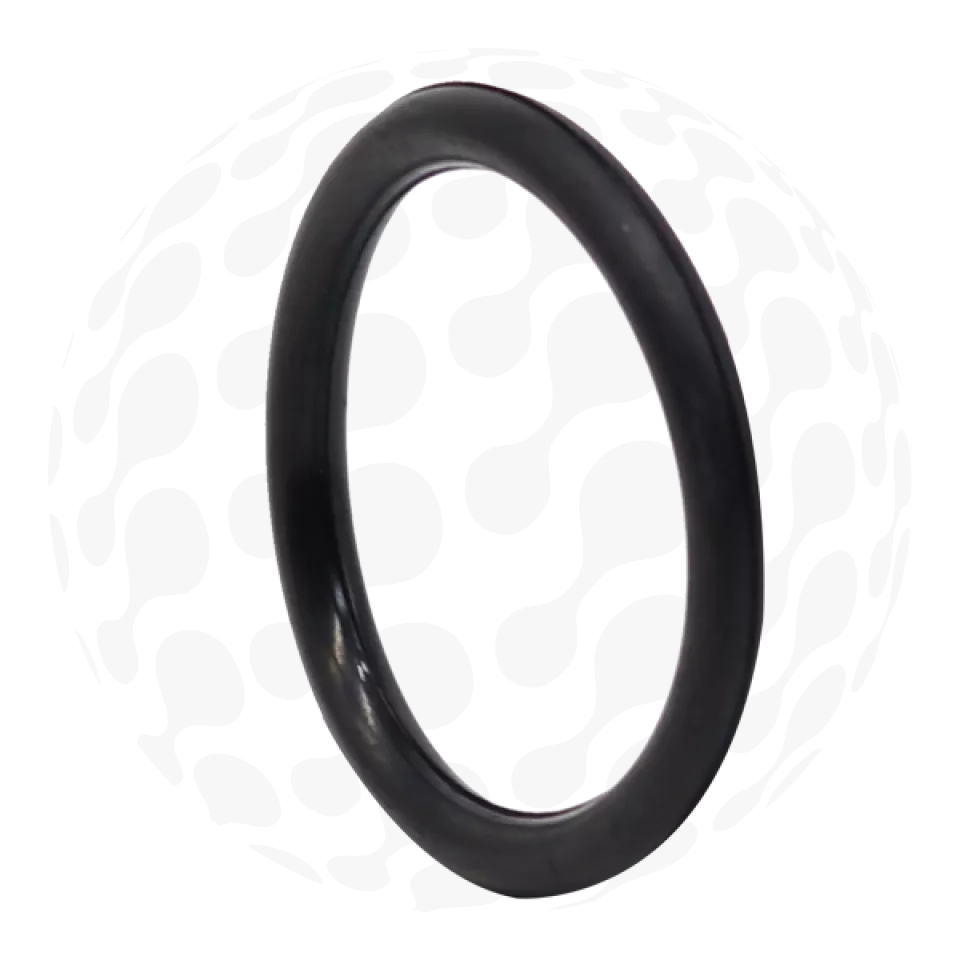

RJT O-Ring EPDM Seal
RJT O-Ring EPDM Seal
Features
- EPDM seal maximum temperature rating 120 °C
- EPDM is suitable for general insulation of hot water, steam, alcohols, coolants, acids and bases
- FDA Approved
View Dimensions
You need to have a trade account with us to download CAD files.
RJT Fittings
-

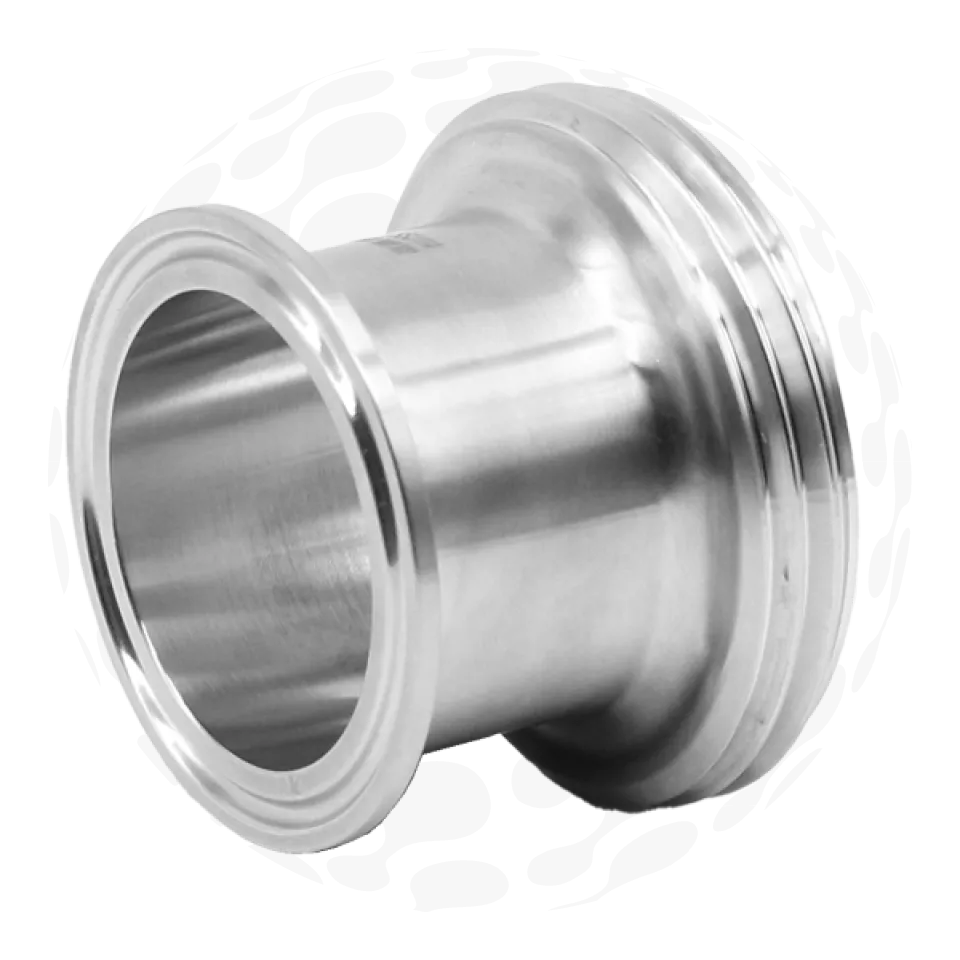

RJT Male to Tri Clover Adapter
RJT Male to Tri Clover Adapter
Features
- No Need For Welding! Save Time And Effort With One-Piece Adapters
View Dimensions
-

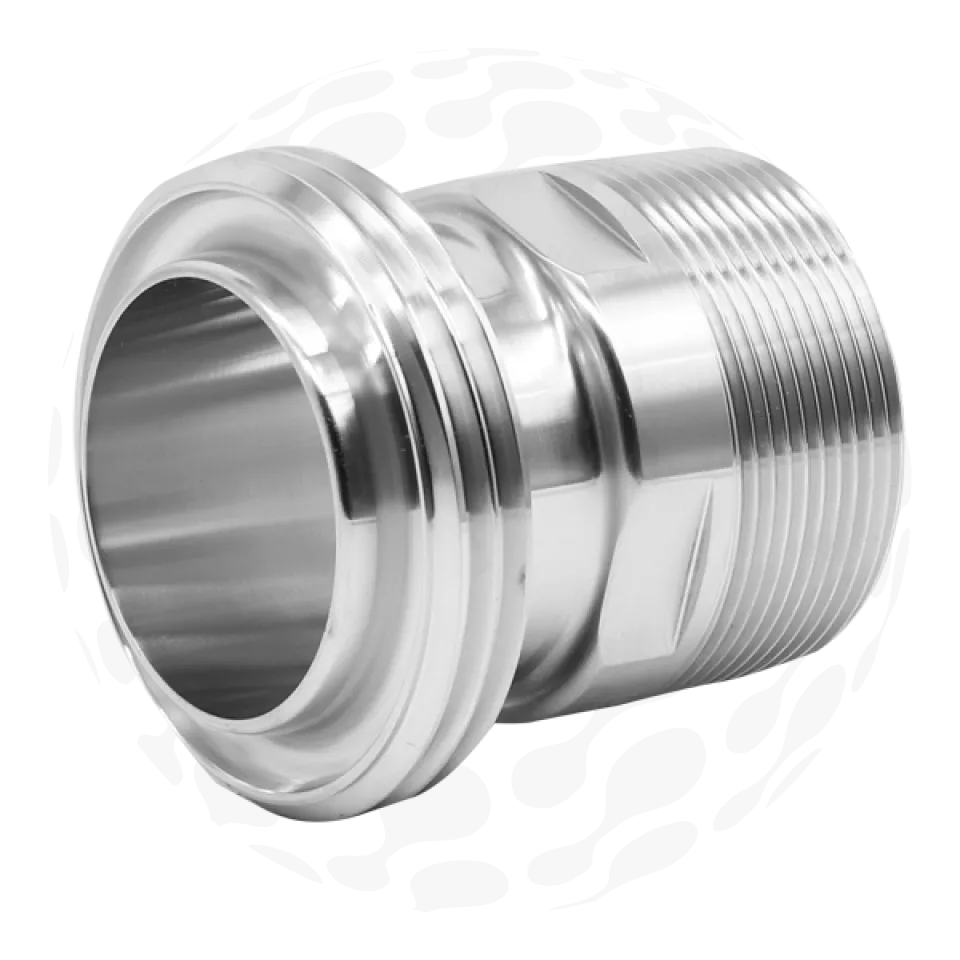

BSP Nipple to RJT Male Adapter
BSP Nipple to RJT Male Adapter
Features
- BSP Threaded End
- Working Pressure: 10 bar (for pressures higher than this, please enquire)
- Working Temperature: 250°C at 10 bar ...
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
View Dimensions
-

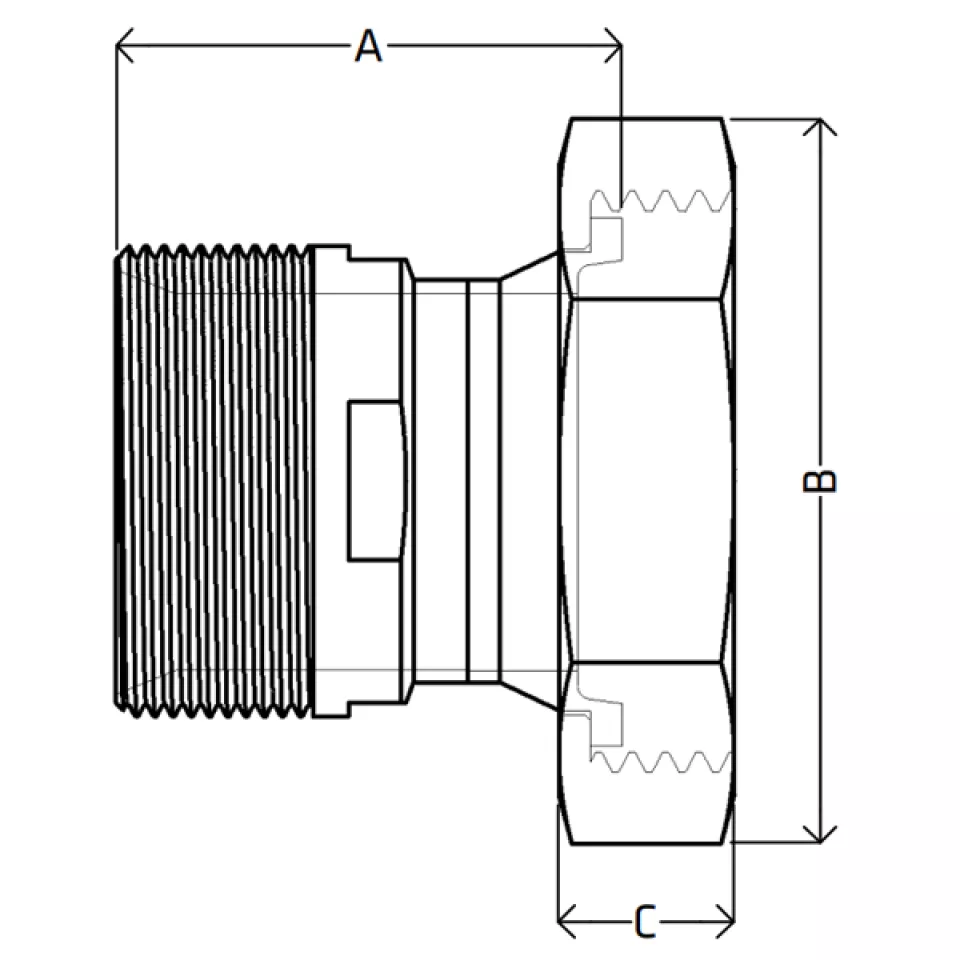

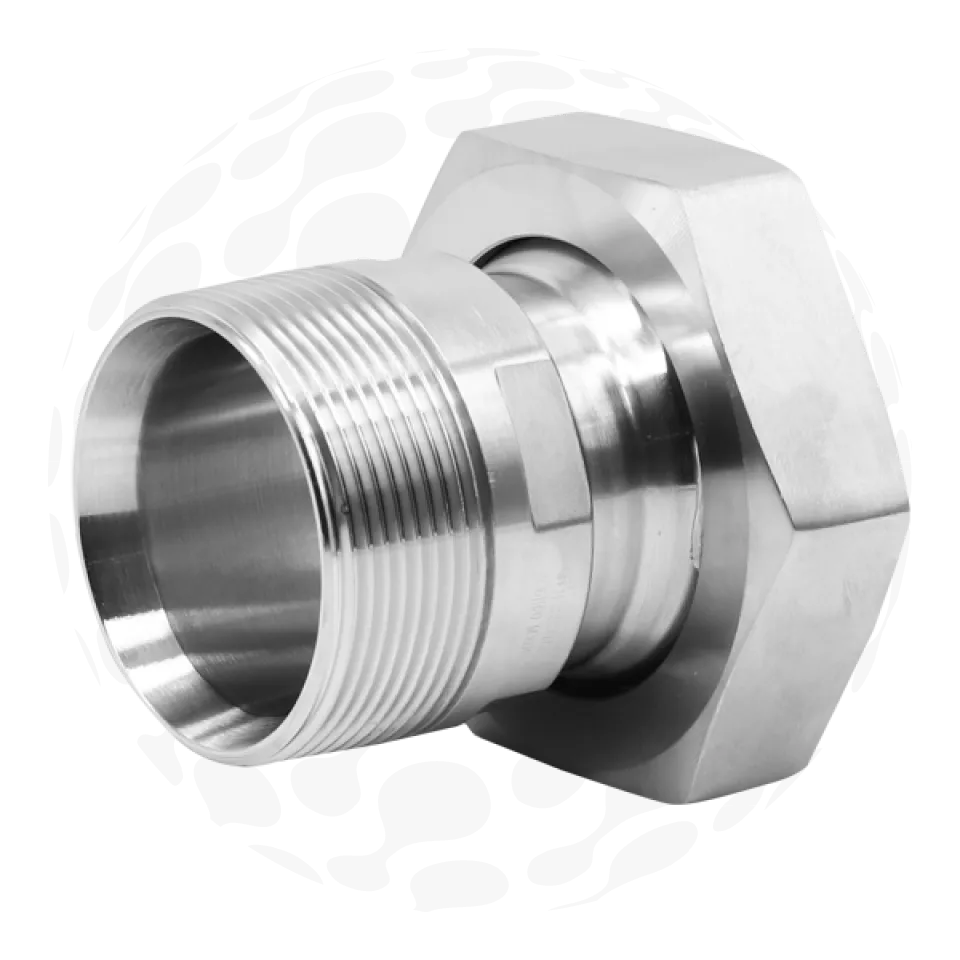

BSP Nipple to RJT Female Adapter
BSP Nipple to RJT Female Adapter
Features
- Comes Standard With Hex Nut
- Hex Nut is 304 grade
- Flat Spots For Ease Of Tightening ...
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Working Pressure: 10 bar / 150 PSI (for pressures higher than this, please enquire)
- Working Temperature: 250°C at 10 bar / 150 PSI
View Dimensions
You need to have a trade account with us to download CAD files.
-

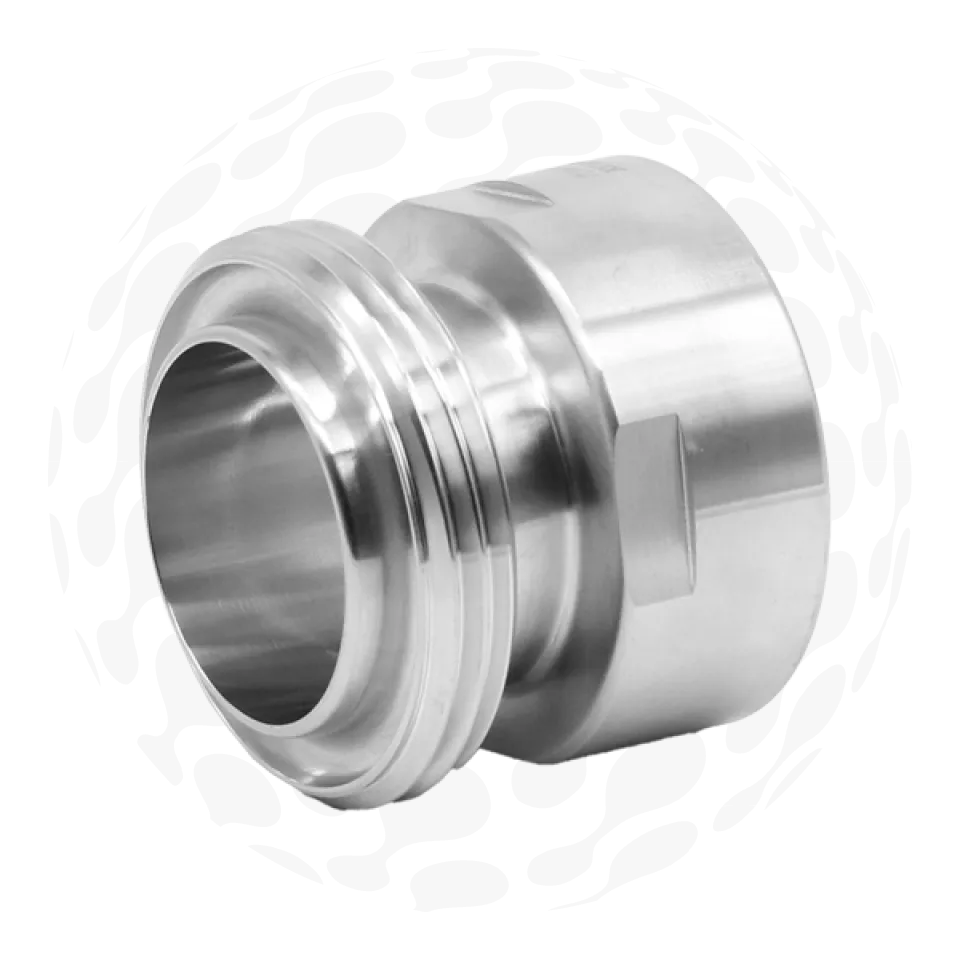

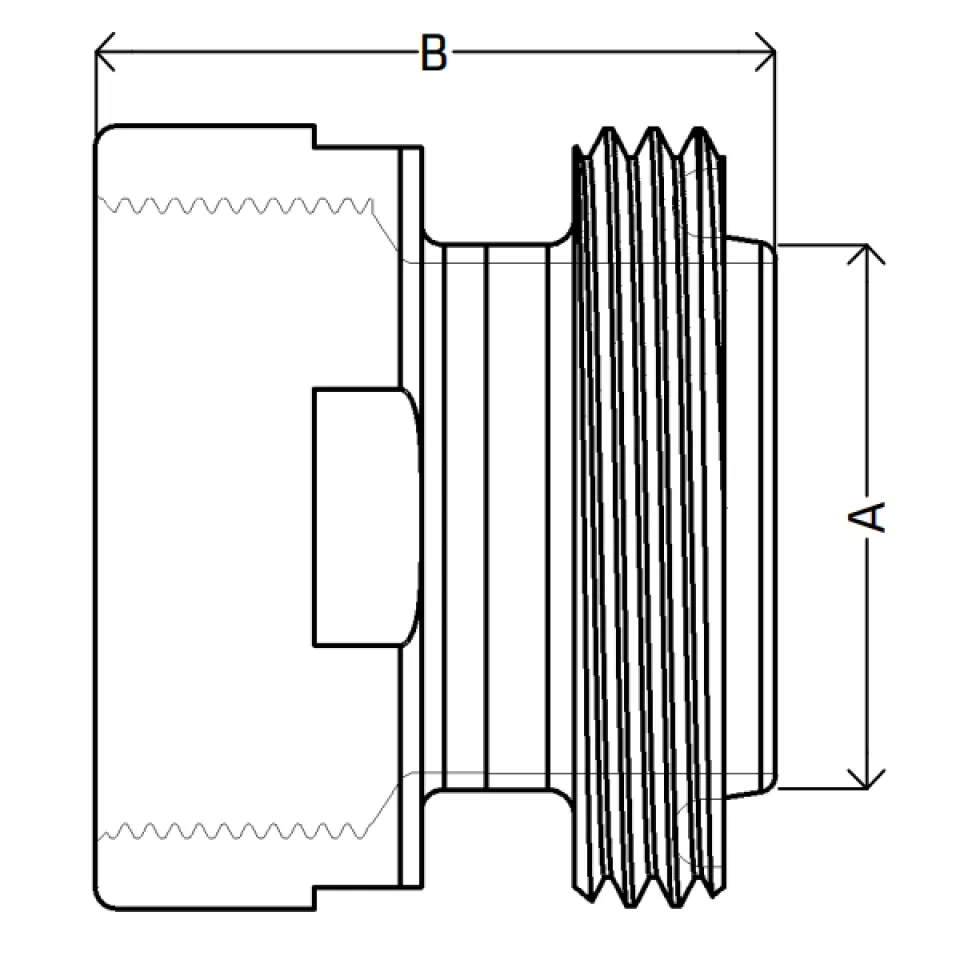

BSP Socket to RJT Male Adapter
BSP Socket to RJT Male Adapter
Features
- BSP Threaded Socket with RJT Male Part
- No Need For Welding! Save Time And Effort With One-Piece Adapters
- Flat Spots For Ease Of Tightening ...
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Working Pressure: 10 bar / 150 PSI (for pressures higher than this, please enquire)
- Working Temperature: 250°C at 10 bar / 150 PSI
View Dimensions
-

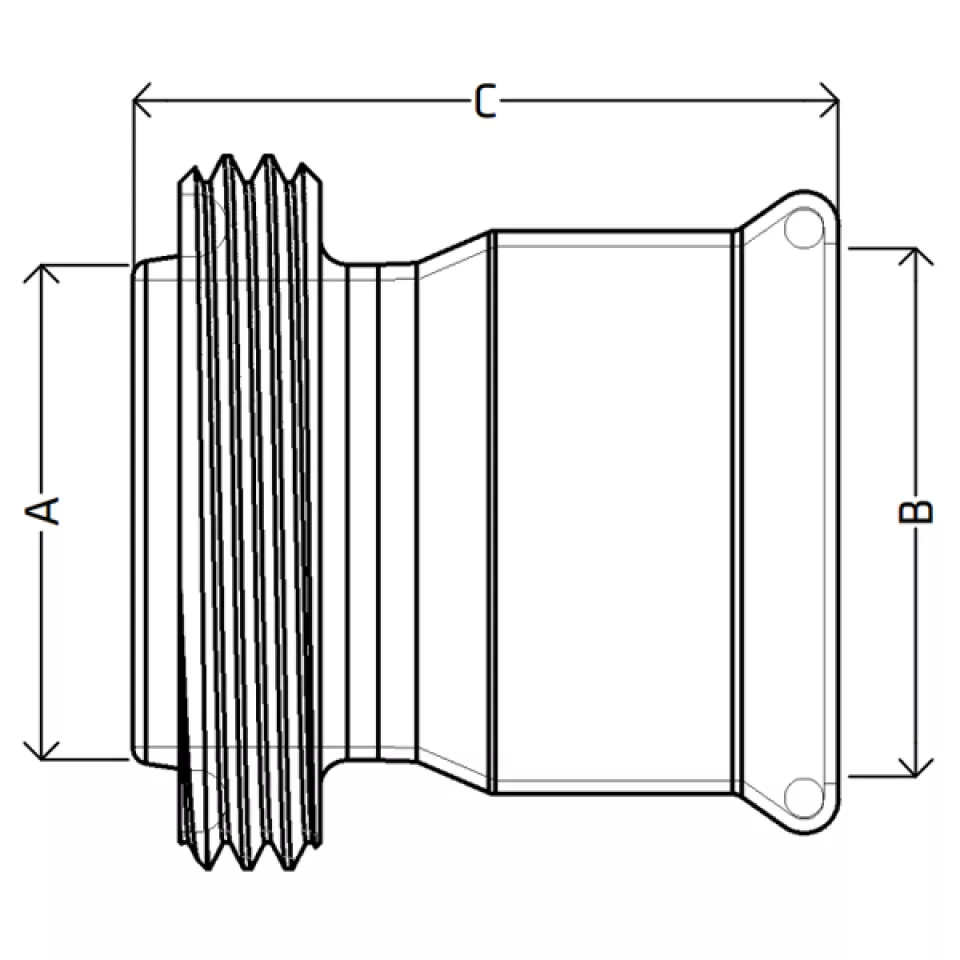

RapidPress to RJT Male Adapter
RapidPress to RJT Male Adapter
Features
- EPDM Seal
- Temperature rating: -20°C to +120°C
- Also available in our RapidPress Extreme range
View Dimensions
You need to have a trade account with us to download CAD files.
-

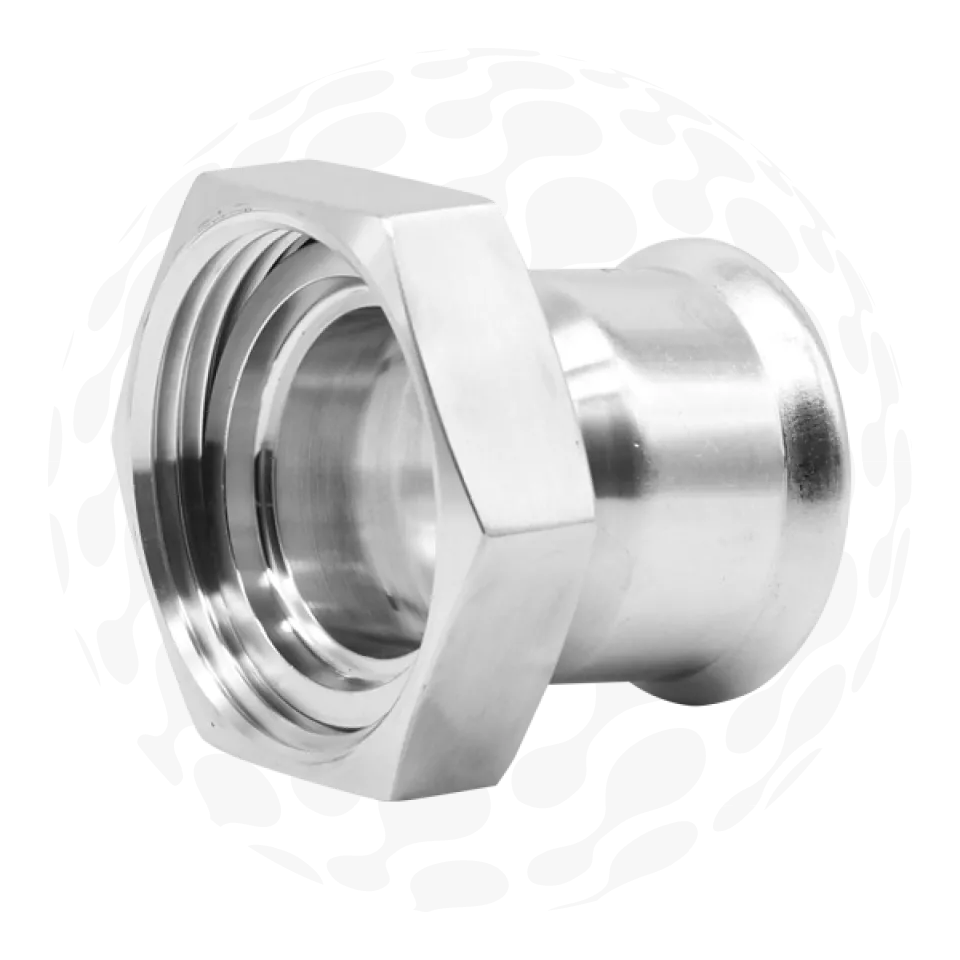

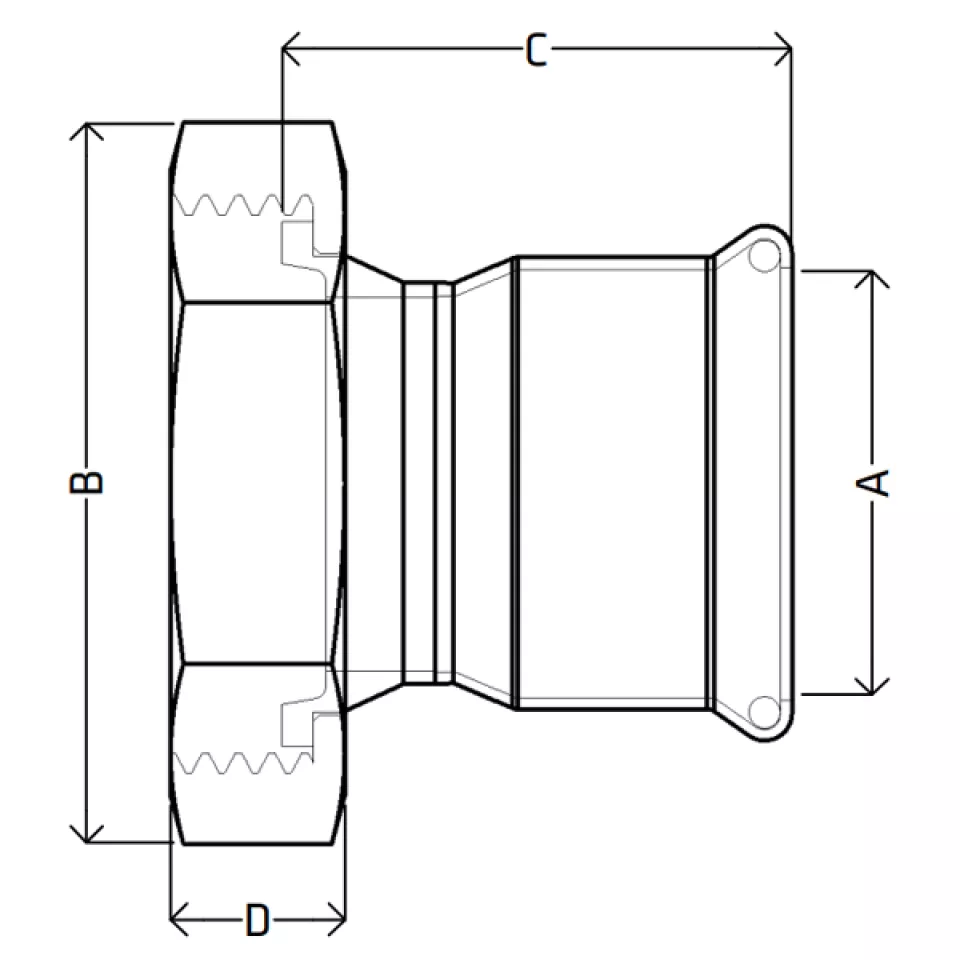

RapidPress to RJT Female Adapter
RapidPress to RJT Female Adapter
Features
- EPDM Seal
- Temperature rating: -20°C to +120°C
- Also available in our RapidPress Extreme range
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Union Blank with 15NB BSP Socket
RJT Union Blank with 15NB BSP Socket
Features
- RJT Blank Cap with centered 15NB Female BSP Socket
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket ...
- Female BSP threaded
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Blind Hex Nut
RJT Blind Hex Nut
Features
- Also known as a Blanking Cap
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Union Blank with 20NB BSP Socket
RJT Union Blank with 20NB BSP Socket
Features
- RJT Blank Cap with centered 20NB Female BSP Socket
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket ...
- Female BSP threaded
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Blind Slotted Nut
RJT Blind Slotted Nut
Features
- Also known as a Blanking Cap
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Concentric Reducer
RJT Concentric Reducer
Features
- 320 Grit Finish
- Pre-Welded with RJT Connections
- RJT Male Part = Smaller Diameter End ...
- RJT Weld Liner & Hex Nut = Larger Diameter End
View Dimensions
You need to have a trade account with us to download CAD files.
-
Short Radius RJT Bend 90°
Short Radius RJT Bend 90°
Features
- Short Radius (1.5x Diameter)
- 320 Grit Finish
- Pre-Welded with RJT Male Part & Weld Liner/Hex Nut Connections
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Equal Tee
RJT Equal Tee
Features
- 320 Grit Finish
- Pre-Welded with RJT Connections
- Male Part / Male Part / Weld Liner & Hex Nut Orientation
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Male Part Hose Joiner
RJT Male Part Hose Joiner
Features
- RJT Male Part Ends
- For joining two RJT Female hoses
- Handle for ease of use ...
- 200mm Length
View Dimensions
-
RJT Male Single Swaged Hosetail
Test Subtitle
RJT Male Single Swaged Hosetail
Test Subtitle
Features
- Pre-Welded with a RJT Male Part
View DimensionsYou need to have a trade account with us to download CAD files.
-
RJT Weld Liner Single Swaged Hosetail
RJT Weld Liner Single Swaged Hosetail
Features
- Pre-Welded with a RJT Weld Liner
- RJT Hex Nuts and Slotted Nuts sold seperately
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Weld Liner Double Swaged Hosetail
RJT Weld Liner Double Swaged Hosetail
Features
- Pre-Welded with a RJT Weld Liner
- RJT Hex Nuts and Slotted Nuts sold seperately
View Dimensions
Tri Clover Unions
-

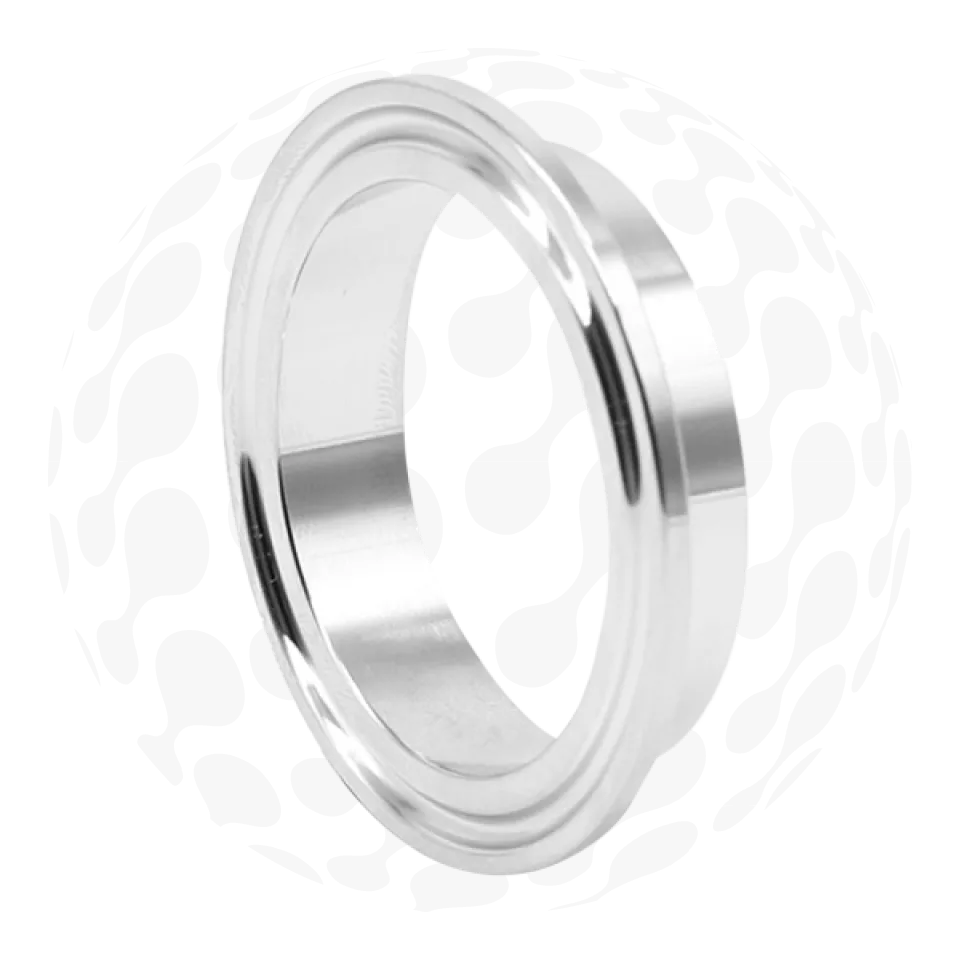

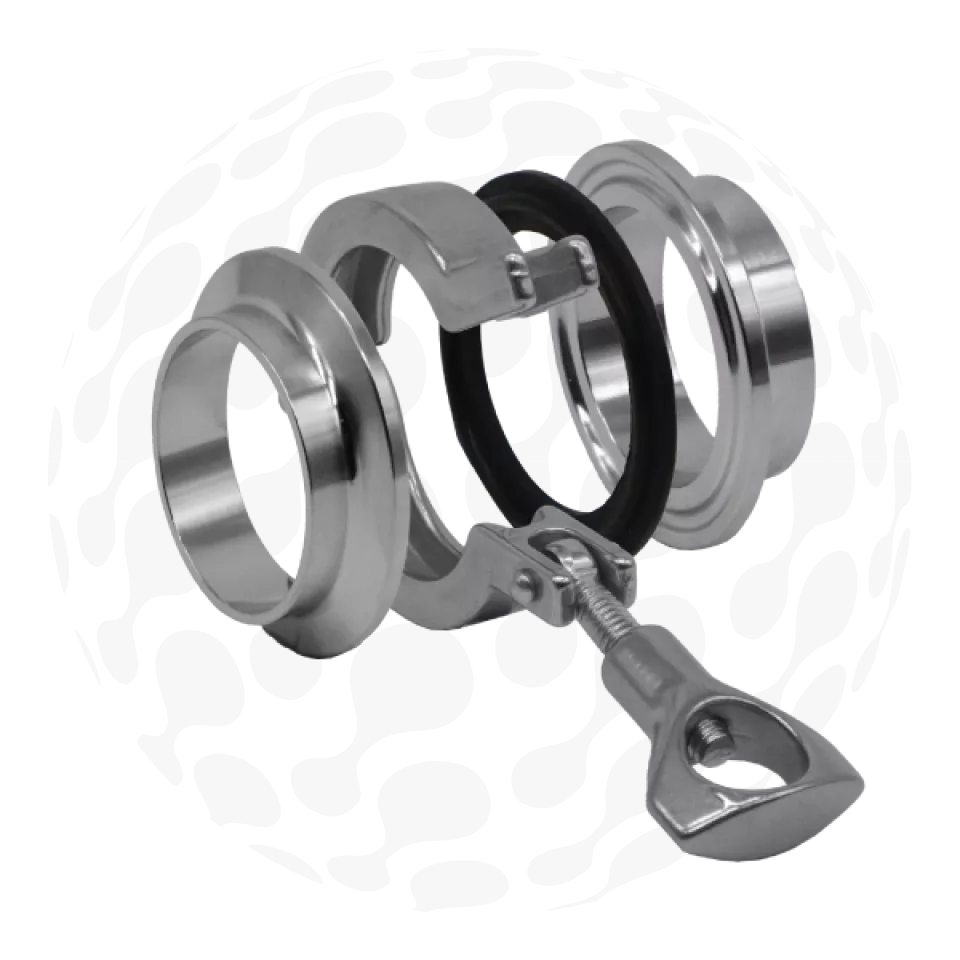

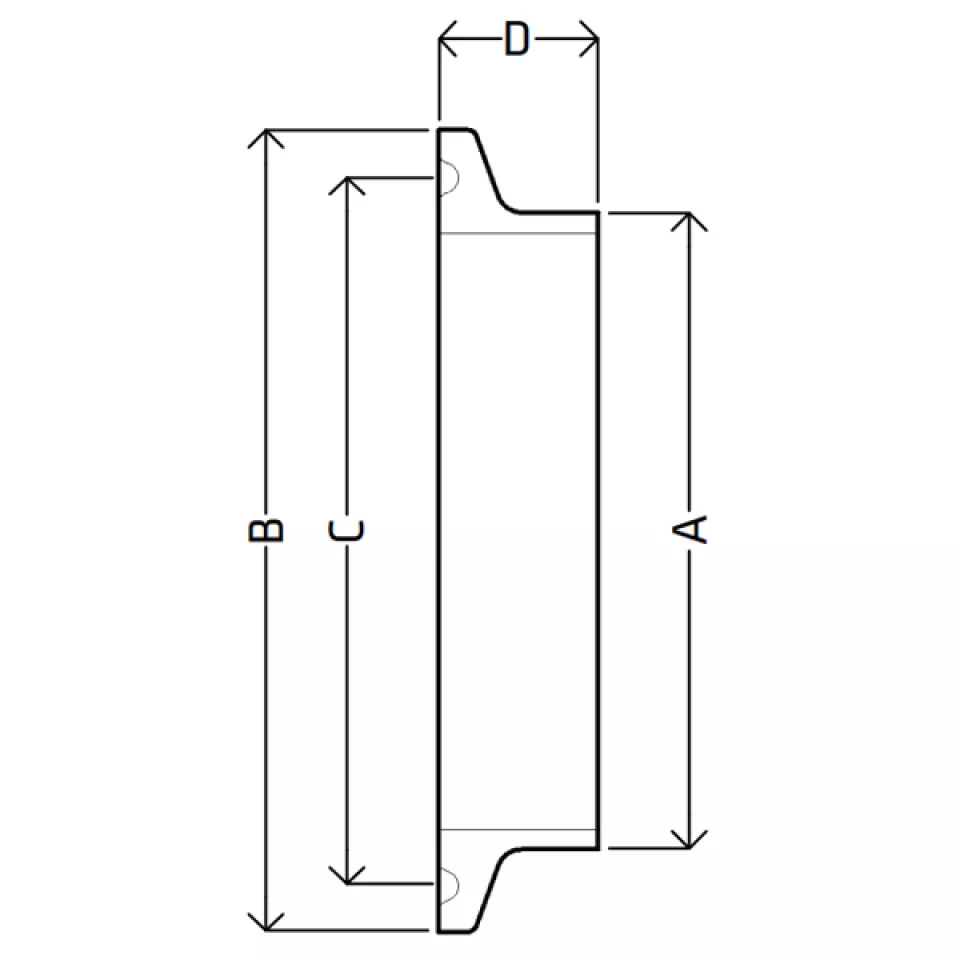

Tri Clover Union with Short Ferrule - EPDM
Tri Clover Union with Short Ferrule - EPDM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (EPDM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts ...
- Butt welds to OD tube
View Dimensions
You need to have a trade account with us to download CAD files.
-

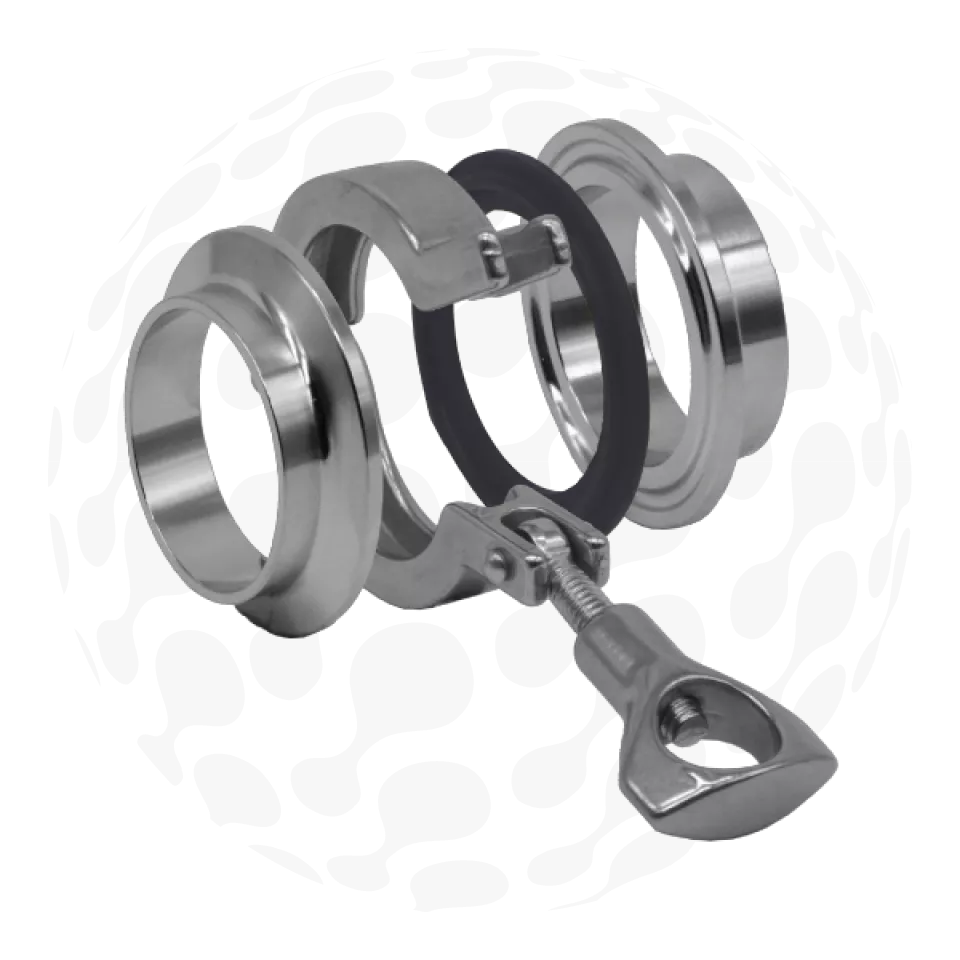

Tri Clover Union with Short Ferrule - FKM
Tri Clover Union with Short Ferrule - FKM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (FKM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts ...
- Butt welds to OD tube
View Dimensions
-

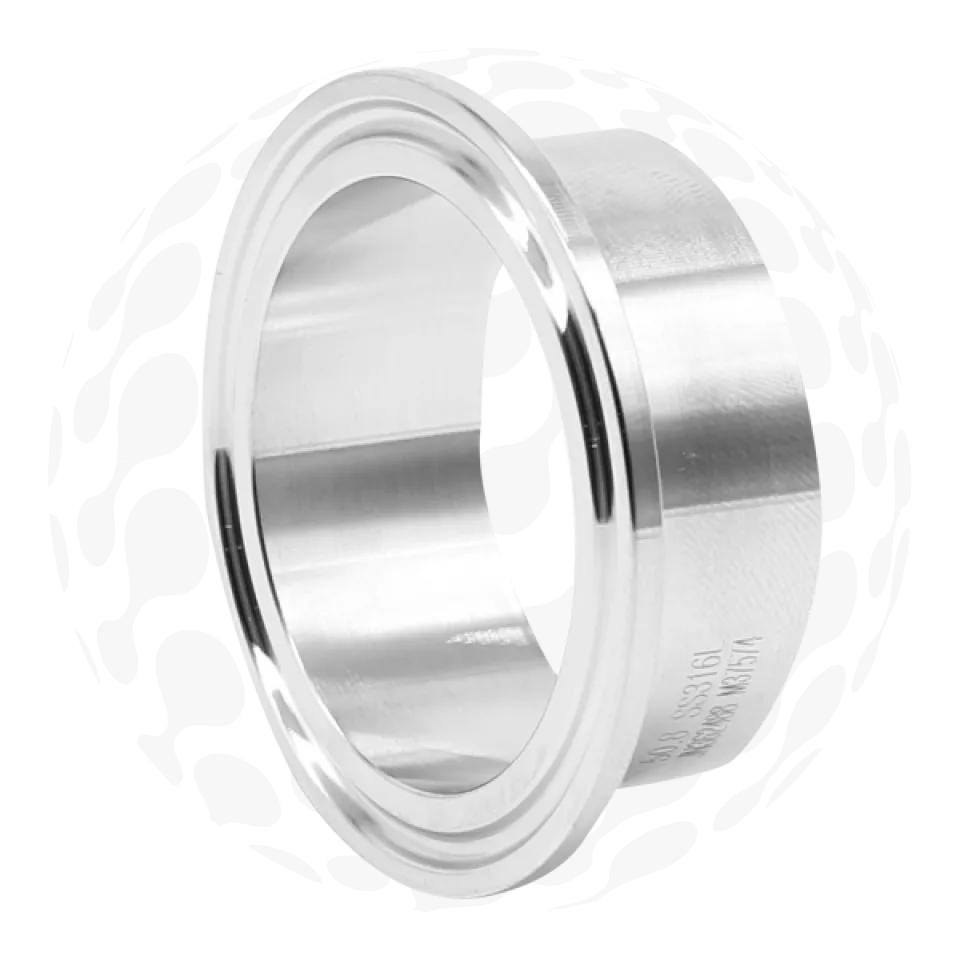

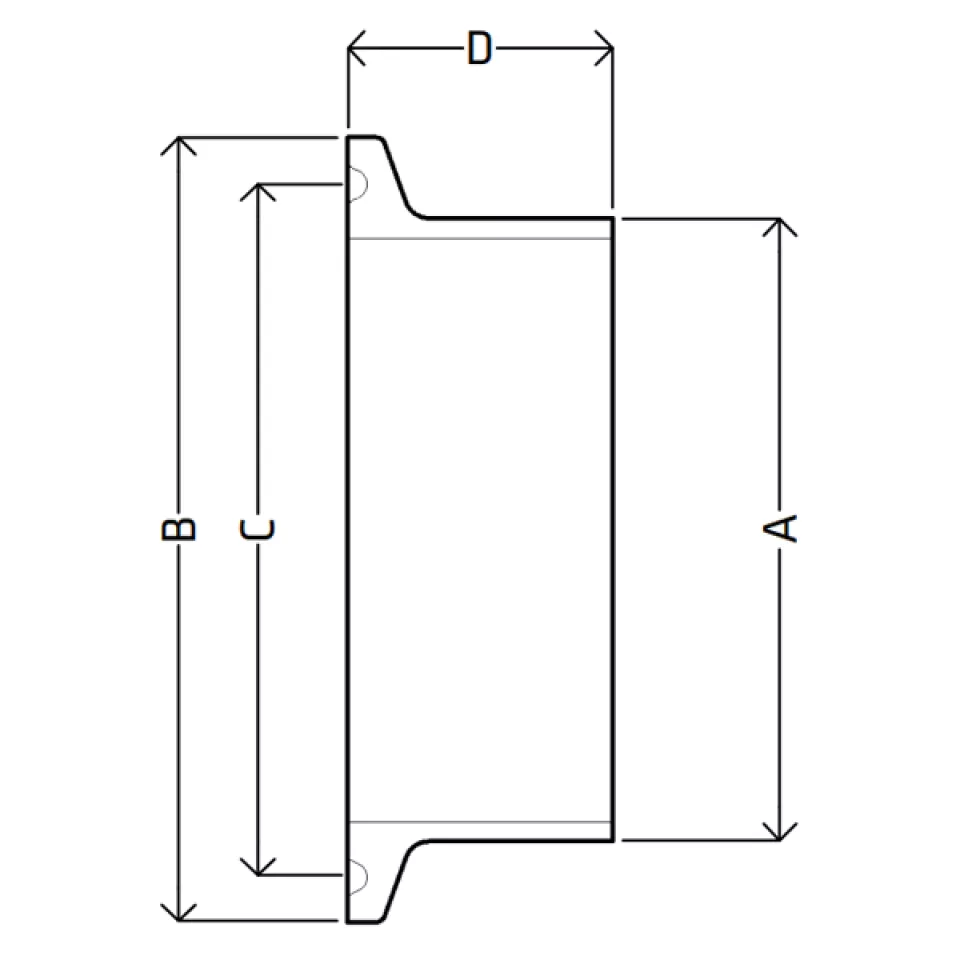

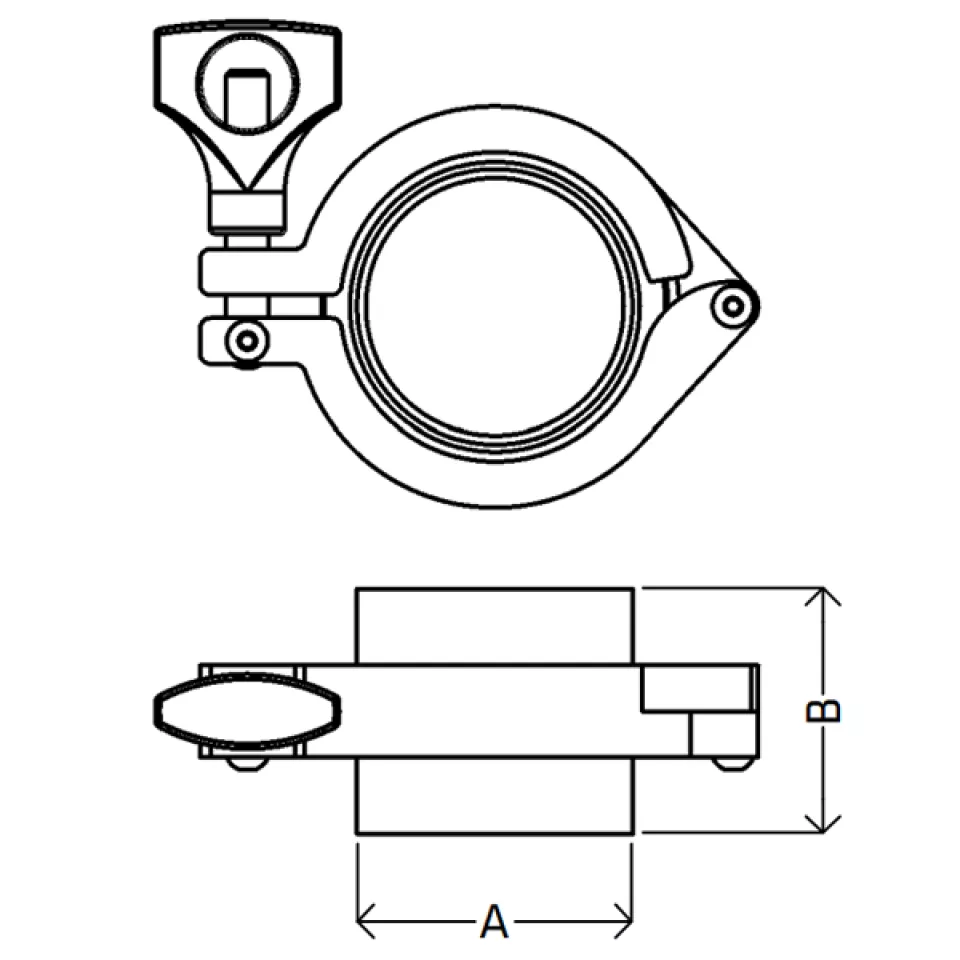

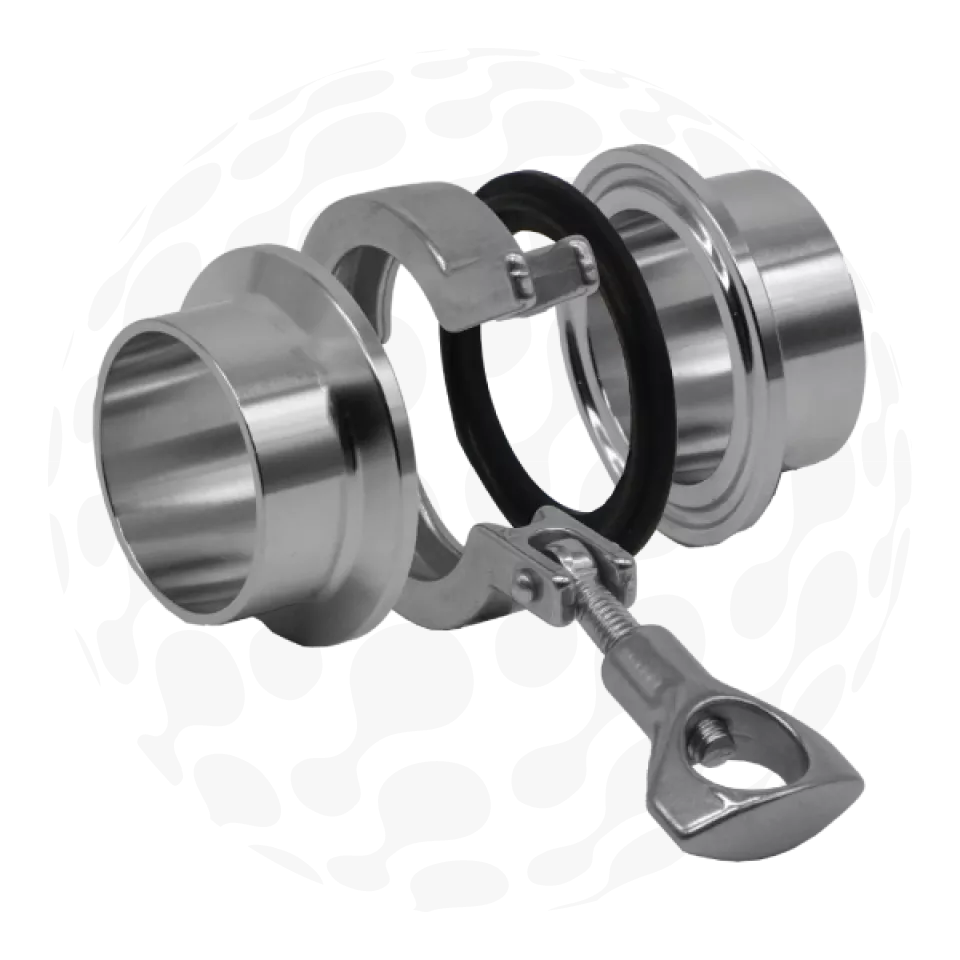

Tri Clover Union with Medium Ferrule - EPDM
Tri Clover Union with Medium Ferrule - EPDM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (EPDM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts ...
- Butt welds to OD tube
View Dimensions
You need to have a trade account with us to download CAD files.
-

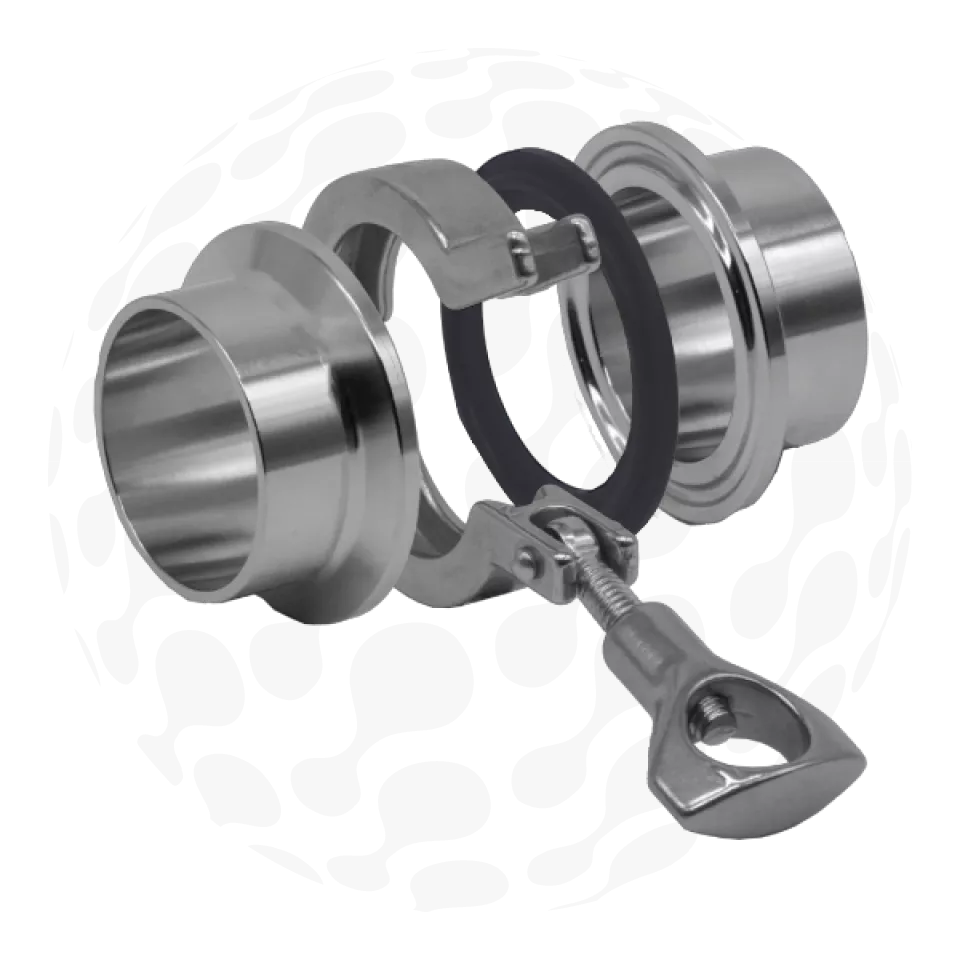

Tri Clover Union with Medium Ferrule - FKM
Tri Clover Union with Medium Ferrule - FKM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (FKM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts ...
- Butt welds to OD tube
View Dimensions
-

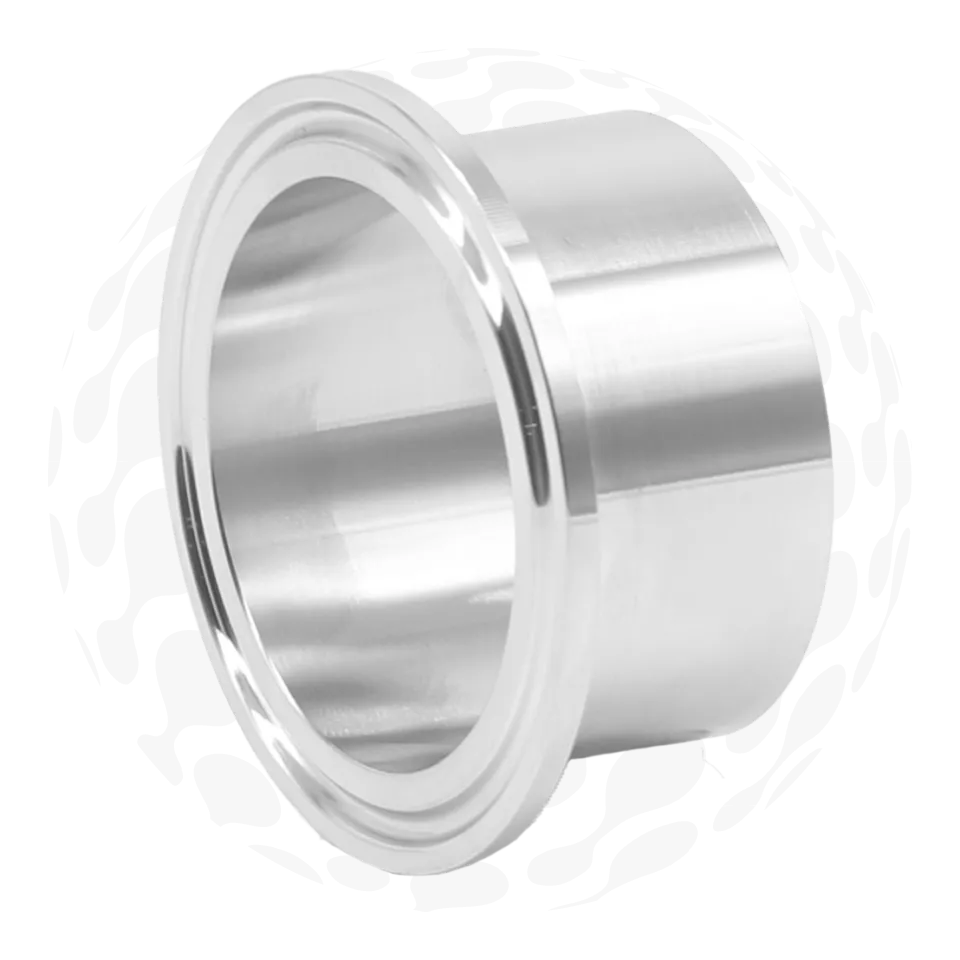

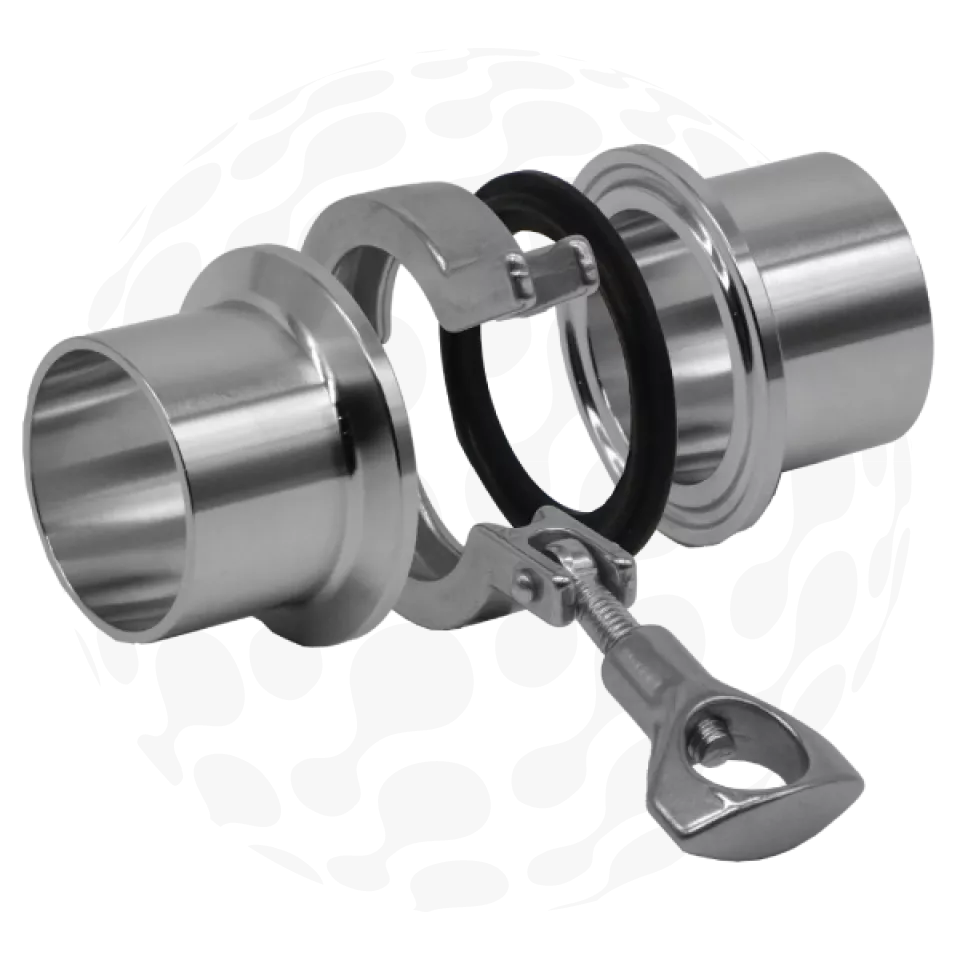

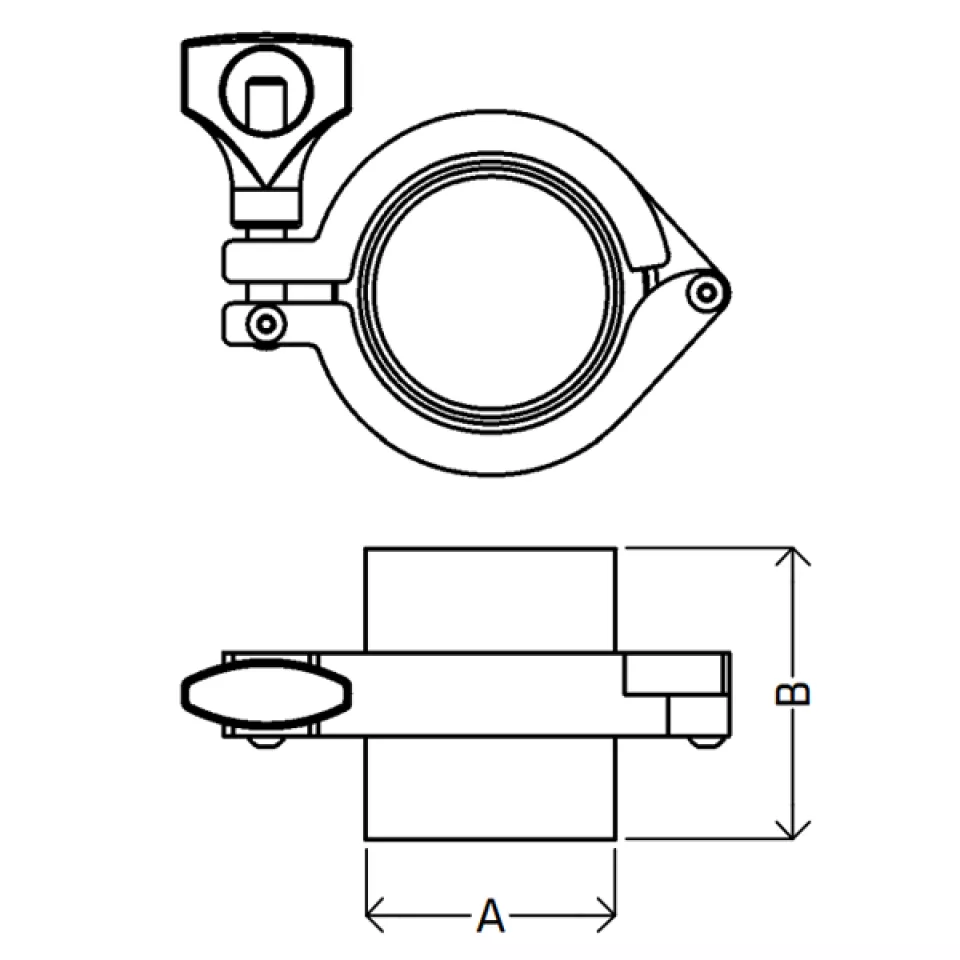

Tri Clover Union with Long Ferrule - EPDM
Tri Clover Union with Long Ferrule - EPDM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (EPDM)
- Clamp is Grade 304
- Other material seals available as separate parts
View Dimensions
You need to have a trade account with us to download CAD files.
-

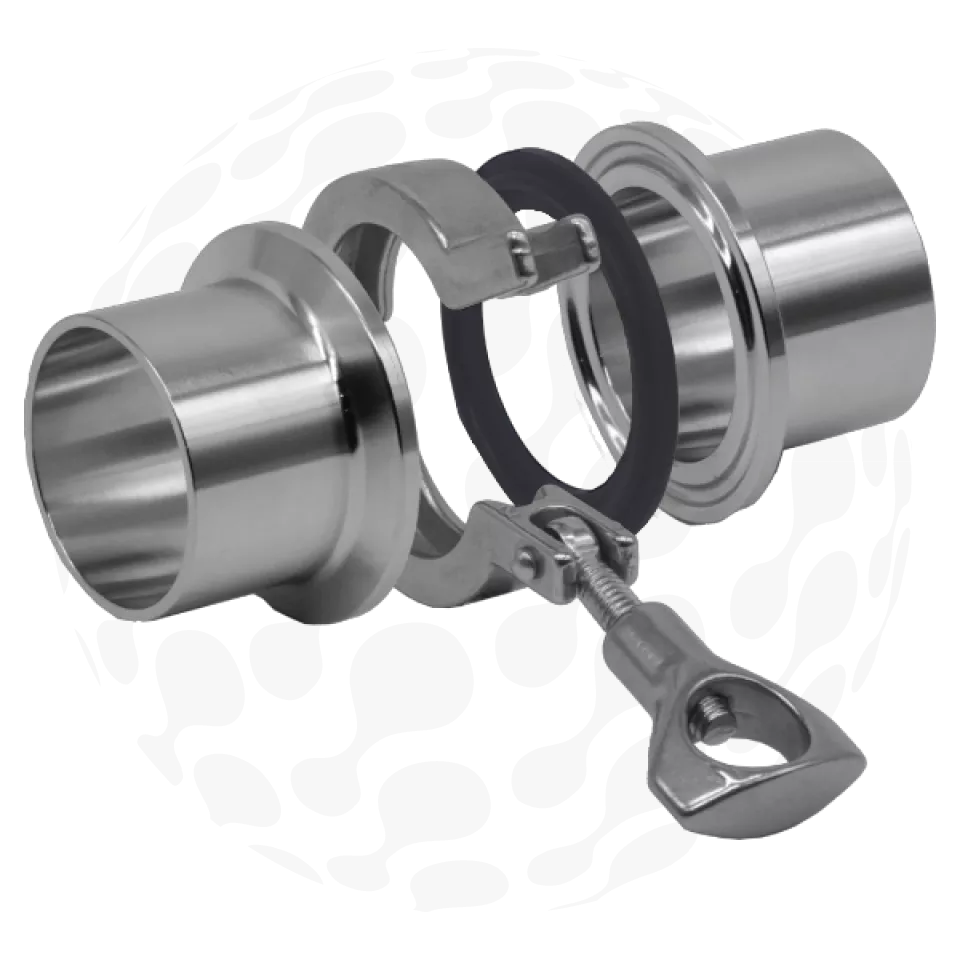

Tri Clover Union with Long Ferrule - FKM
Tri Clover Union with Long Ferrule - FKM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (FKM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts
View Dimensions
-

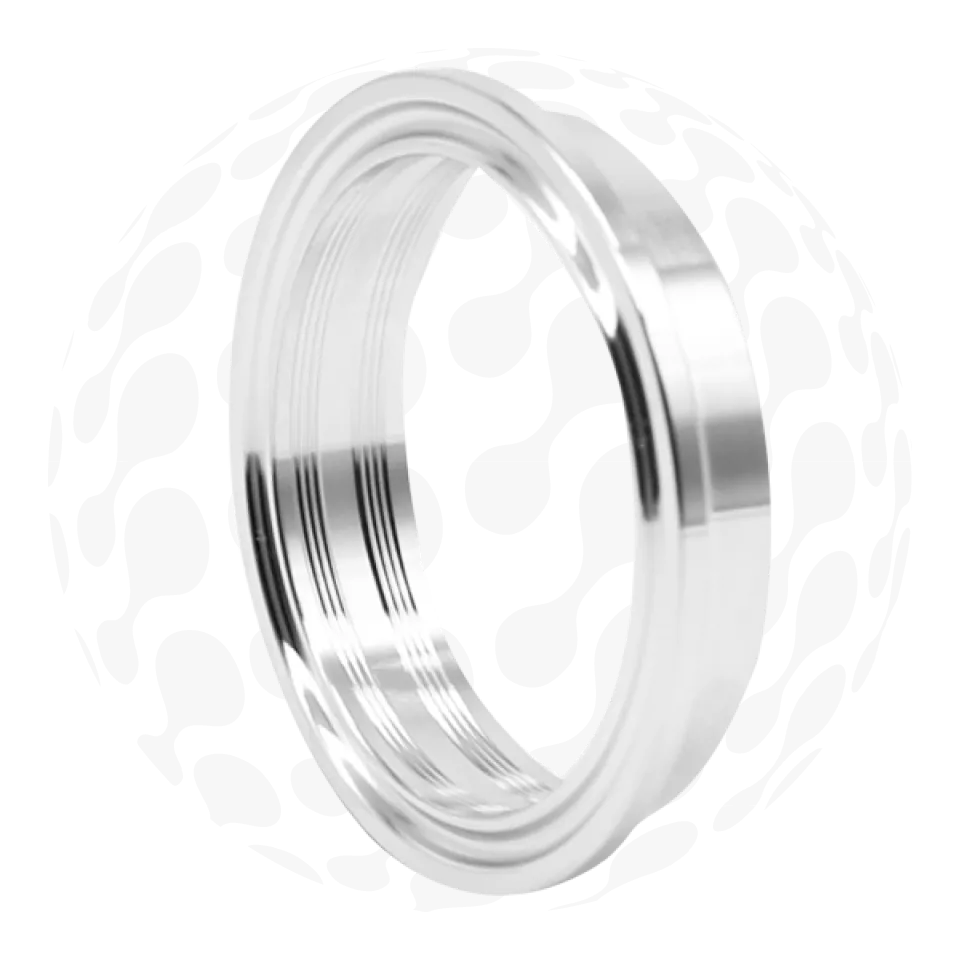

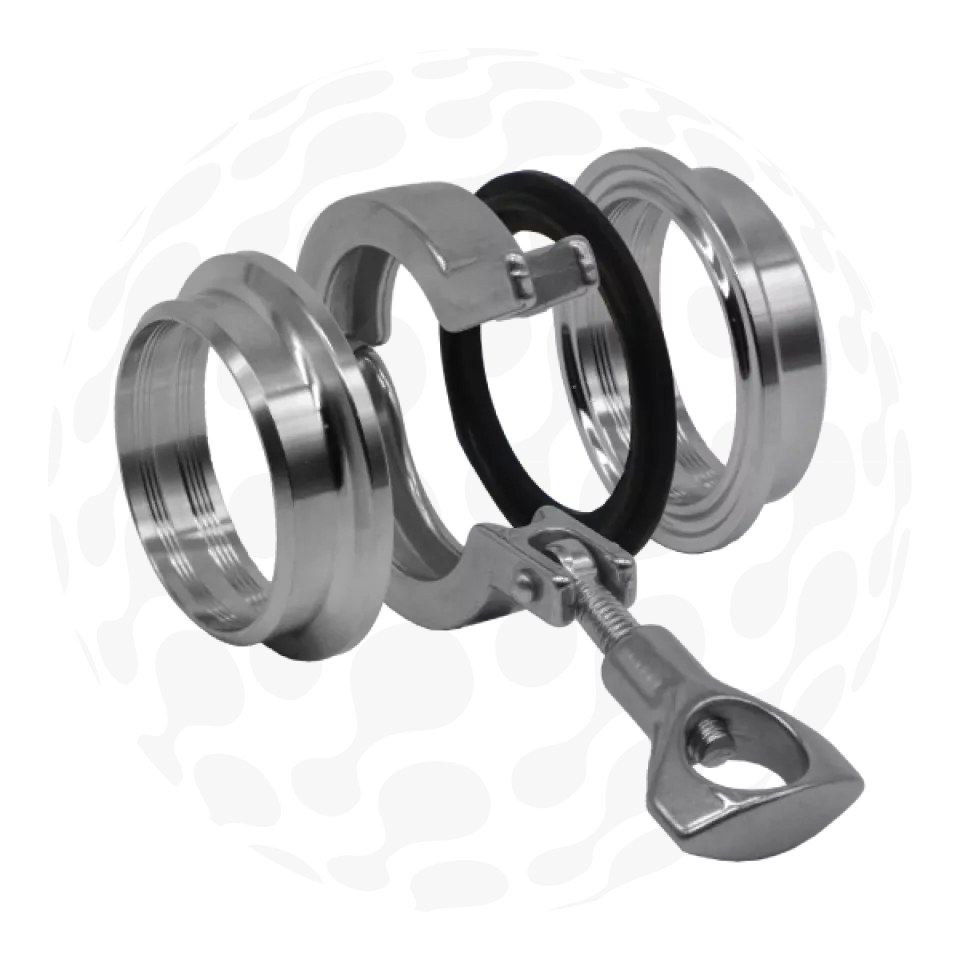

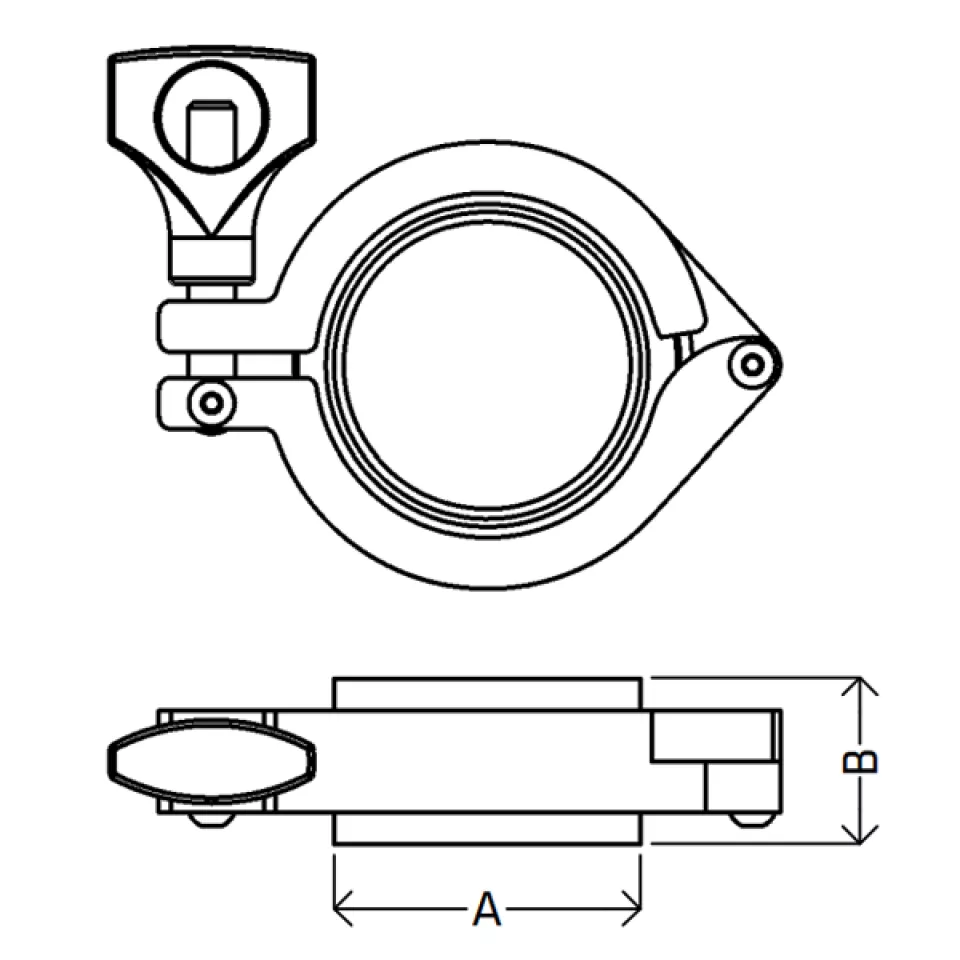

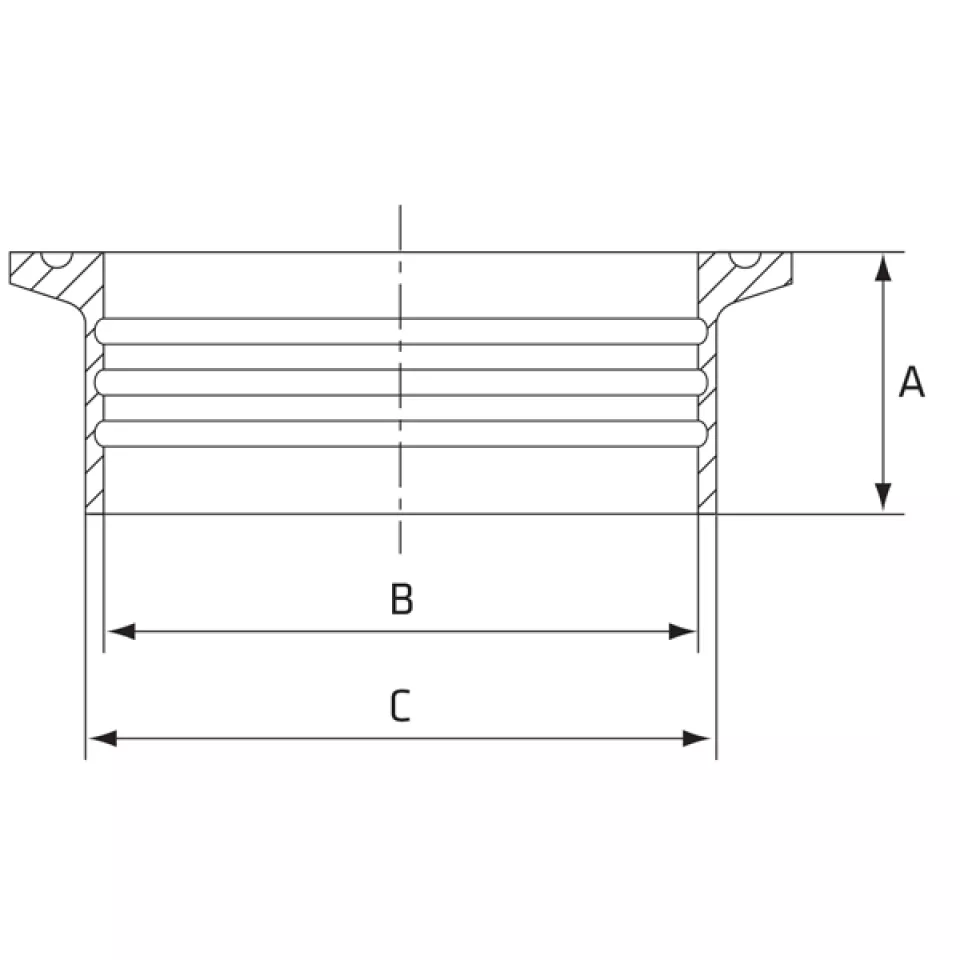

Tri Clover Union with Short Expansion Ferrule - EPDM
Tri Clover Union with Short Expansion Ferrule - EPDM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (EPDM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts ...
- Slips over tube
View Dimensions
You need to have a trade account with us to download CAD files.
-

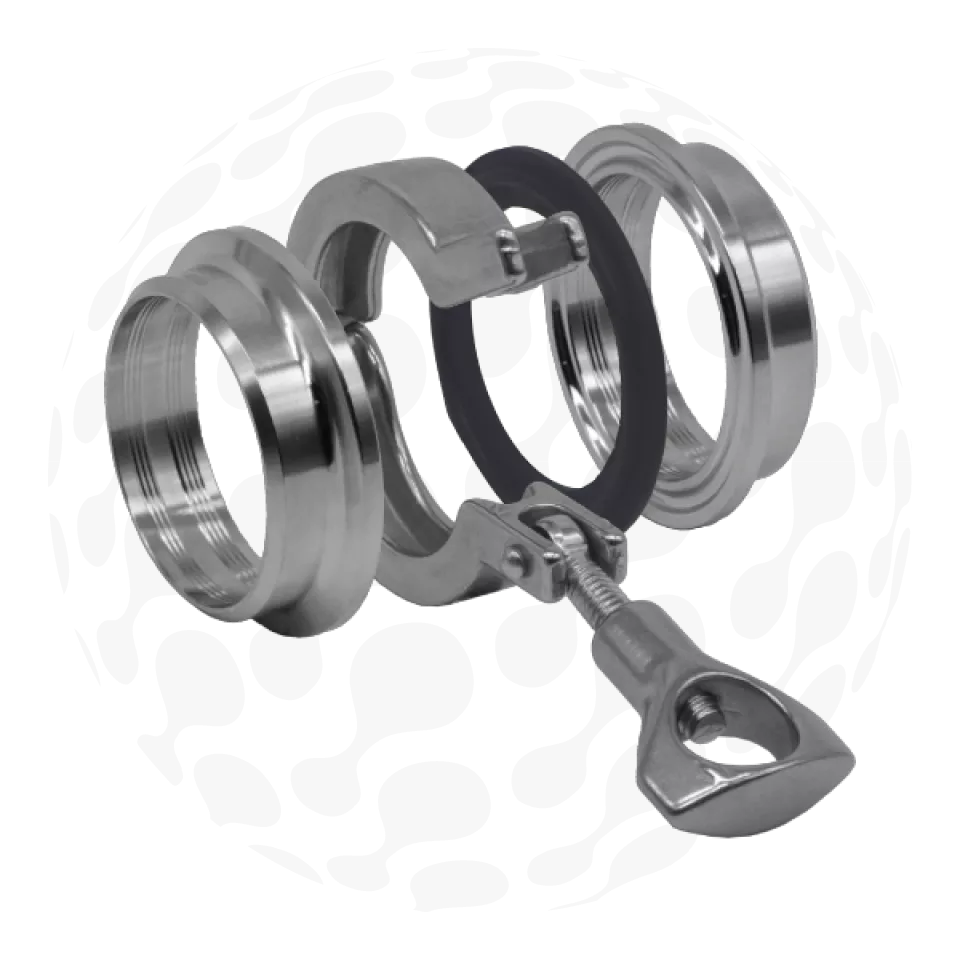

Tri Clover Union with Short Expansion Ferrule - FKM
Tri Clover Union with Short Expansion Ferrule - FKM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (FKM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts ...
- Slips over tube
View Dimensions
-

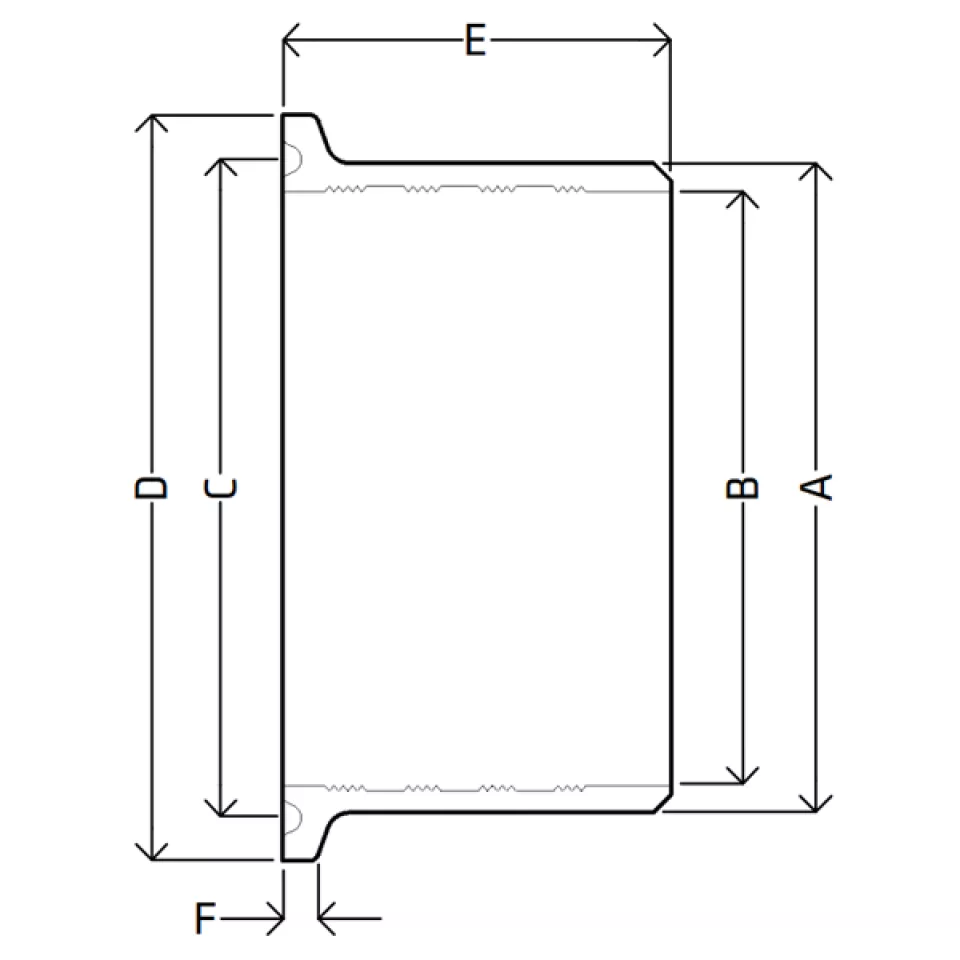

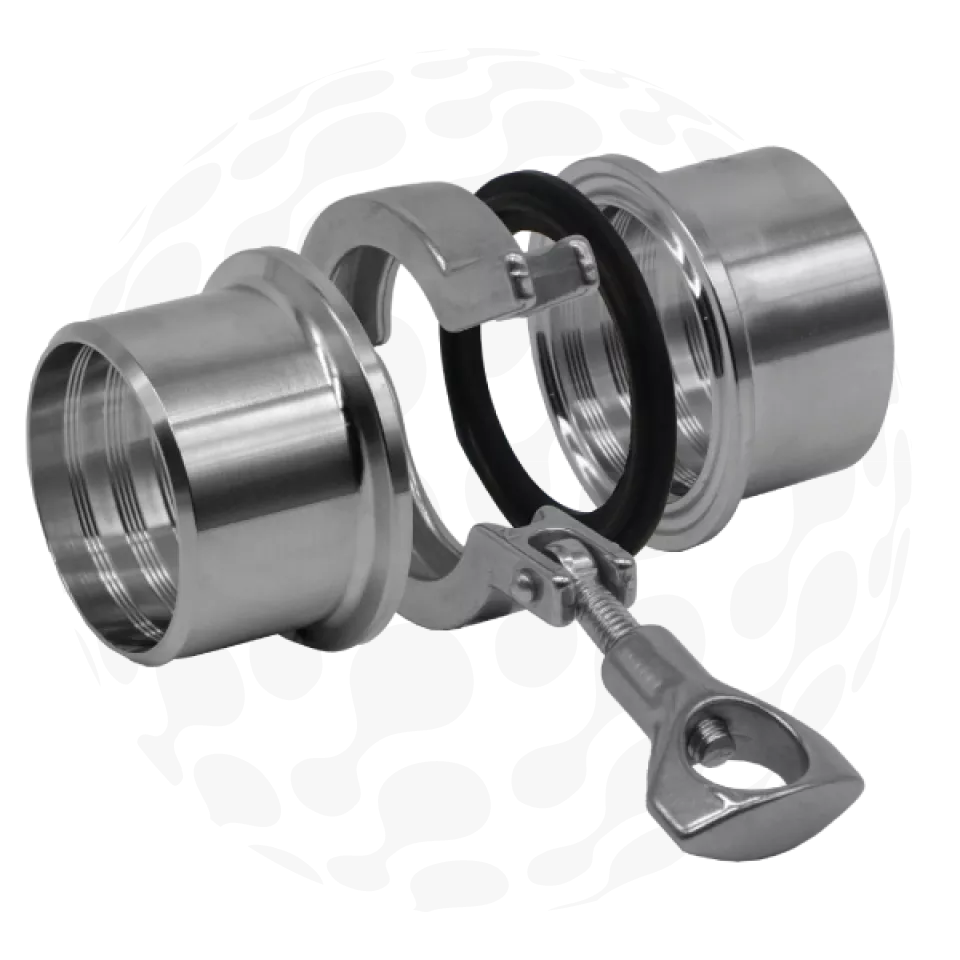

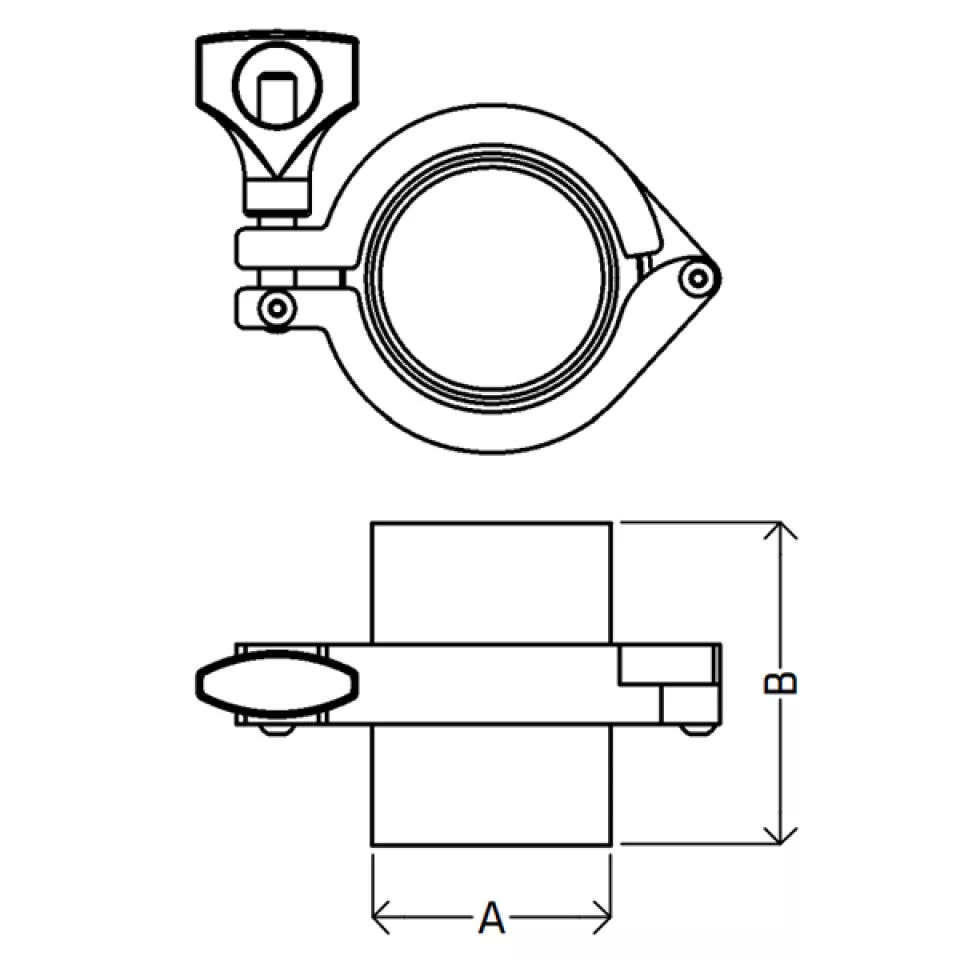

Tri Clover Union with Long Expansion Ferrule - EPDM
Tri Clover Union with Long Expansion Ferrule - EPDM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (EPDM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts. ...
- Slips over tube
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Union with Long Expansion Ferrule - FKM
Tri Clover Union with Long Expansion Ferrule - FKM
Features
- Complete Set including Clamp, 2x Ferrules, and Seal (FKM)
- Clamp is Grade 304
- Other material grade Seals available as separate parts. ...
- Slips over tube
View Dimensions
-
Tri Clover Short Ferrule
Tri Clover Short Ferrule
Features
- Butt welds to Outside Diameter tube sides
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Long Ferrule
Tri Clover Long Ferrule
Features
- Butt welds to Outside Diameter tube sides
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Short Expansion Ferrule
Tri Clover Short Expansion Ferrule
Features
- Slip-on connection to suit Outside Diameter tube sizes
- No need for purge welding, saves time
View Dimensions
-
Tri Clover Long Expansion Ferrule
Tri Clover Long Expansion Ferrule
Features
- Slip-on connection to suit Outside Diameter tube sizes
- No need for purge welding, saves time
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Union Blank
Tri Clover Union Blank
Features
- Used for blanking the union
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Clamp
Tri Clover Clamp
Features
- Single pin, standard Tri Clover clamp
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Clamp - Heavy Duty
Tri Clover Clamp - Heavy Duty
Features
- Double bolt, heavy duty clamp
- Includes spring washers and brass hex nuts
View Dimensions
-
Tri Clover EPDM Seal
Tri Clover EPDM Seal
Features
- EPDM seal temperature rating 120 °C
- EPDM is suitable for general insulation of hot water, steam, alcohols, coolants, acids and bases
- Meets FDA requirements
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover FKM Seal
Tri Clover FKM Seal
Features
- FKM Seal Temperature Rating 230°C
- FKM Is Suitable For Higher Temperatures And Restricting Permeation Of Chemicals
- Meets FDA requirements
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover PTFE Seal
Tri Clover PTFE Seal
Features
- PTFE temperature rating -180°C, +250°C
- PTFE is suitable for hot water, steam, alcohols, coolants, acids and bases
View Dimensions
Tri Clover Fittings
-
RJT Male to Tri Clover Adapter
RJT Male to Tri Clover Adapter
Features
- No Need For Welding! Save Time And Effort With One-Piece Adapters
View Dimensions
-
BSP Nipple to Tri Clover Adapter
BSP Nipple to Tri Clover Adapter
Features
- BSP Threaded Nipple with Tri Clover Ferrule
- Flat Spots For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1 ...
- Male Threads are Tapered (BSPT)
- Working Pressure: 10 bar / 150 PSI (for pressures higher than this, please enquire)
- Working Temperature: 250°C at 10 bar / 150 PSI
View Dimensions
-
BSP Socket to Tri Clover Adapter
BSP Socket to Tri Clover Adapter
Features
- BSP Threaded Socket with Tri Clover Ferrule
- No Need For Welding! Save Time And Effort With One-Piece Adapters
- Flat Spots For Ease Of Tightening ...
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Working Pressure: 10 bar / 150 PSI (for pressures higher than this, please enquire)
- Working Temperature: 250°C at 10 bar / 150 PSI
View Dimensions
-
RapidPress to Tri Clover Adapter
RapidPress to Tri Clover Adapter
Features
- EPDM Seal
- Temperature rating: -20°C to +120°C
- Also available in our RapidPress Extreme range
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Union Blank with 15NB BSP Socket
Tri Clover Union Blank with 15NB BSP Socket
Features
- Tri Clover Union Blank Cap with centred 15NB Female BSP Socket.
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket
View Dimensions
-
Tri Clover Union Blank with 20NB BSP Socket
Tri Clover Union Blank with 20NB BSP Socket
Features
- Tri Clover Union Blank Cap with centred 20NB Female BSP Socket
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket
View Dimensions
-
Tri Clover Concentric Reducer
Tri Clover Concentric Reducer
Features
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrule Connections
View Dimensions
You need to have a trade account with us to download CAD files.
-
Short Radius Tri Clover Bend 90°
Short Radius Tri Clover Bend 90°
Features
- Short Radius (1.5x Diameter)
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrules
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Bend 45°
Tri Clover Bend 45°
Features
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrule Connections
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Equal Tee
Tri Clover Equal Tee
Features
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrule Connections
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Single Swaged Hosetail
Tri Clover Single Swaged Hosetail
Features
- Pre-Welded with a Tri Clover Ferrule
View Dimensions
You need to have a trade account with us to download CAD files.
DIN Unions
-
DIN Male Part
DIN Male Part
Features
- Butt welds to Diameter Nominal (DN) tube sizes
- Product Conforms to Hygienic Standard DIN11851
View Dimensions
You need to have a trade account with us to download CAD files.
-
DIN Weld Liner
DIN Weld Liner
Features
- Butt welds to Diameter Nominal (DN) tube sizes
- Product Conforms to Hygienic Standard DIN11851
View Dimensions
You need to have a trade account with us to download CAD files.
-
DIN Slotted Nut
DIN Slotted Nut
Features
- Can be used for DIN and DIN Inch unions
- RJT C Spanners can be used for DIN Slotted Nuts
- Product Conforms to Hygienic Standard DIN11851
View Dimensions
You need to have a trade account with us to download CAD files.
-
DIN Union Blank
DIN Union Blank
Features
- Product Conforms to Hygienic Standard DIN11851
View Dimensions
You need to have a trade account with us to download CAD files.
-
DIN Dust Cap
DIN Dust Cap
Features
- Not to be used for liquids as does not seat against seal in Male Part
- Use for empty lines only
- Can be used for DIN and DIN Inch unions ...
- For use with liquids, please use standard DIN Slotted Nut and DIN Union Blank instead
- Product Conforms to Hygienic Standard DIN11851
View Dimensions
You need to have a trade account with us to download CAD files.
-
DIN NBR Seal
DIN NBR Seal
Features
- Nitrile (NBR) seal temperature rating 120°C
- Nitrile is suitable for oils, hydrocarbon fuels, hydraulic fluids, fats, and flame retardant liquids
- Product Conforms to Hygienic Standard DIN11851
View Dimensions
You need to have a trade account with us to download CAD files.
DIN Inch Unions
-
DIN Inch Male Part
DIN Inch Male Part
Features
- Butt welds to Outside Diameter tube sizes
- Product Conforms to Hygienic Standard DIN11851
View Dimensions
You need to have a trade account with us to download CAD files.
BSM Unions
-
BSM Male Part
BSM Male Part
Features
- Butt welds to Outside Diameter tube sizes
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSM Hex Nut
BSM Hex Nut
Features
- Hex Spanner Available
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSM Flat Faced EPDM Seal
BSM Flat Faced EPDM Seal
Features
- EPDM seal maximum temperature rating 120 °C
- Meets FDA requirements
View Dimensions
You need to have a trade account with us to download CAD files.
SMS Unions
-
SMS Male Part
SMS Male Part
Features
- Butt welds to Outside Diameter Tube
View Dimensions
You need to have a trade account with us to download CAD files.
-
SMS Weld Liner
SMS Weld Liner
Features
- Butt welds to Outside Diameter tube.
View Dimensions
You need to have a trade account with us to download CAD files.
-
SMS Slotted Nut
SMS Slotted Nut
Features
- C Spanners available
View Dimensions
You need to have a trade account with us to download CAD files.
-
SMS Blind Nut
SMS Blind Nut
Features
- Also known as a Blanking Cap
View Dimensions
You need to have a trade account with us to download CAD files.
-
SMS EPDM Seal
SMS EPDM Seal
Features
- EPDM temperature rating 120°C
- EPDM is suitable for hot water, steam, alcohols, coolants, acids and bases
View Dimensions
You need to have a trade account with us to download CAD files.
Mac Unions
-
BSP Conical Face Mac Union
BSP Conical Face Mac Union
Features
- Conical Faced Union
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP) ...
- Investment lost wax casting
- Working Pressure: 10 bar / 150 PSI (for pressures higher than this, please enquire)
- Working Temperature: 250°C at 10 bar / 150 PSI
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSP Flat Face Mac Union
BSP Flat Face Mac Union
Features
- Flat Faced Union
- EPDM O-Ring
- BSP Threaded Ends ...
- Female Threads are Parallel (BSPP)
- BSP thread conforms with ISO 7-1/ISO 228-1
- Investment lost wax casting
- Working Pressure: 10 bar / 150 PSI (for pressures higher than this, please enquire)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
View Dimensions
You need to have a trade account with us to download CAD files.
-
Mac Union O-Ring EPDM Seal
Mac Union O-Ring EPDM Seal
Features
- For use with our BSP Flat Face Mac Unions
- Temperature rating 120 °C
- EPDM is suitable for hot water, steam, alcohols or coolants. However not resistant to mineral oils, greases or fuels
View Dimensions
Swivel Joints
-
Swivel Joint
Swivel Joint
Features
- EPDM and PTFE Seals
- Food Grade Lubricant Grease
- Additional sizes available upon request
View Dimensions
Union Spanners
-
Hex Nut Spanner
Hex Nut Spanner
Features
- Suitable to be used with RJT and BSM Hex Nuts
View Dimensions
You need to have a trade account with us to download CAD files.
-
Slotted Nut 'C' Spanner
Slotted Nut 'C' Spanner
Features
- Suitable to be used with RJT, BSM, DIN and SMS Slotted Nuts
View Dimensions
You need to have a trade account with us to download CAD files.
